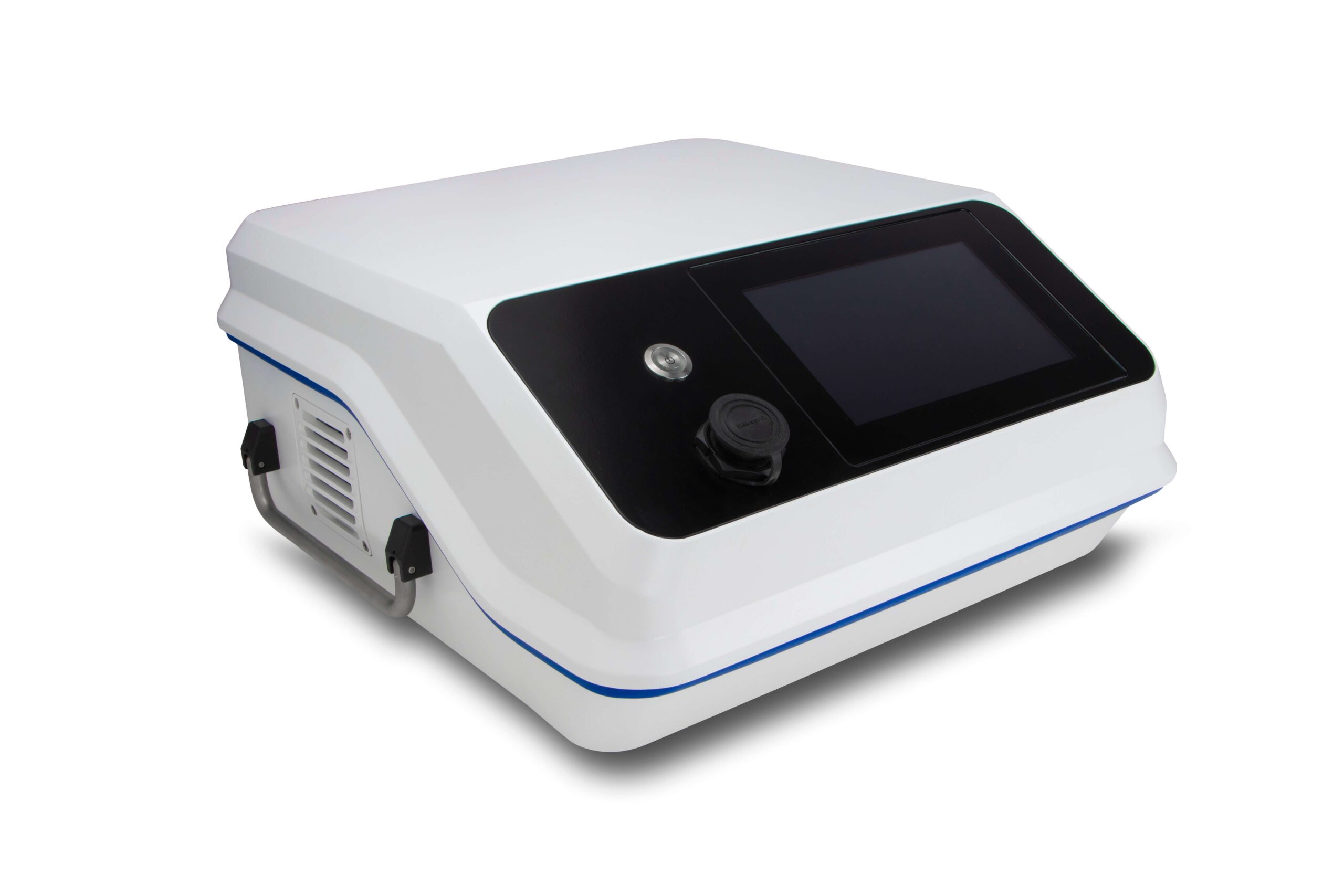

The Levitronix® console series LCO is designed for turnkey process control and automatization with Levitronix® pumps, flow sensors, and third-party components. It offers various operation modes such as stand-alone pumping, flow control, dosing, and pressure control with up to 3 sensors. The embedded PC with a 7″ touch screen allows for intuitive and simultaneous control, monitoring, and configuration of multiple components. The console can be placed horizontally or mounted vertically.

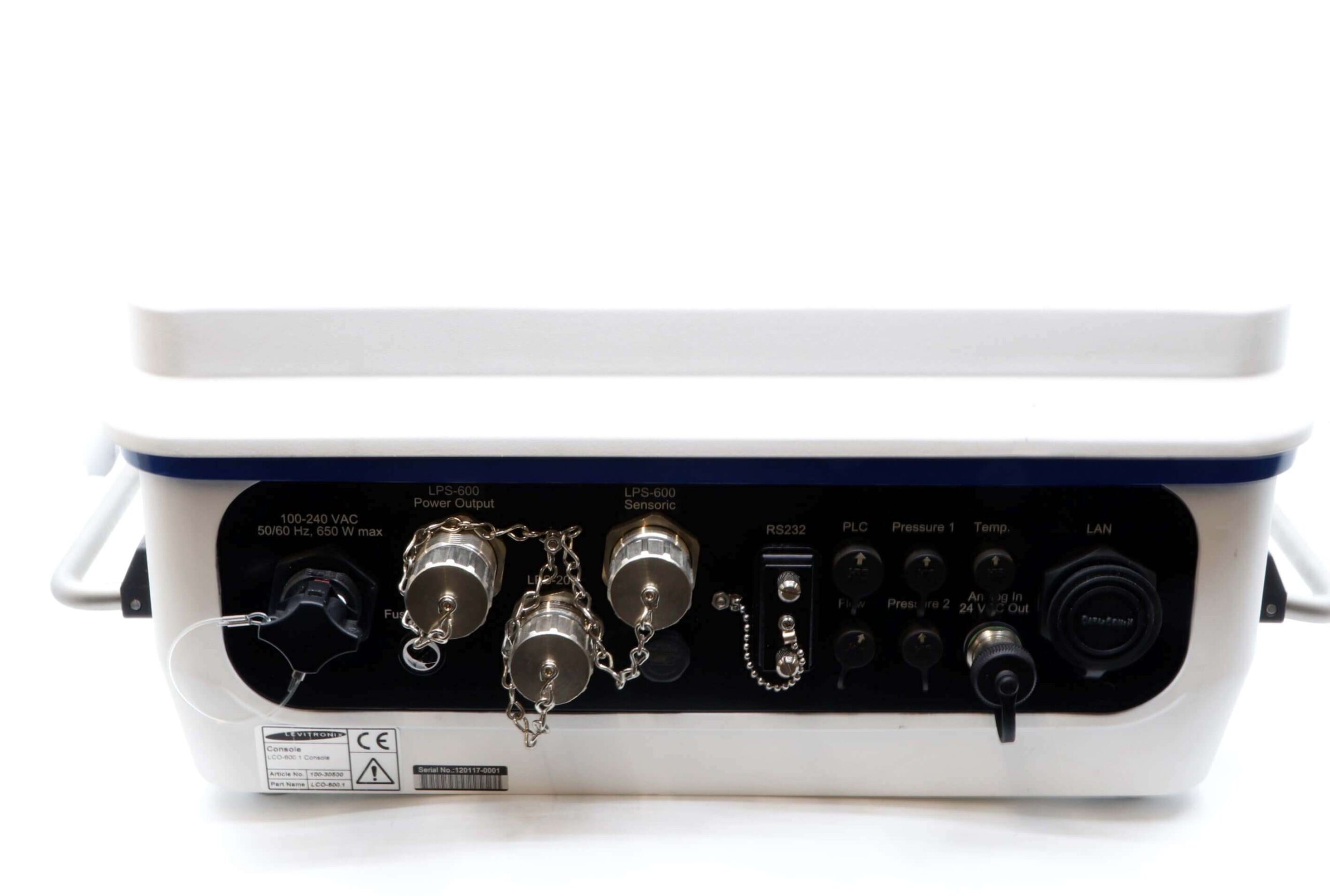

The IP66 housing is dust tight and allows wash down with powerful water jets from any direction. All connectors come with a protective cap for at least IP66 rated sealing if unused. The console can be placed horizontally on a table or mounted vertically on a wall. The display is rotatable by software.
Specifications
| Connector Type | PuraLev® 200 or 600 (only one driver can be connected at the same time) |
|---|---|
| Power | 600 W |
| Voltage | 100-240 VAC |
| PLC Interface | Multi-touch screen 7”, 3 pressure sensors, 2 flow sensor, 1 temp. Sensor PLC (2 digital in/outputs, 1 analog in/output), RS232, LAN, USB |
