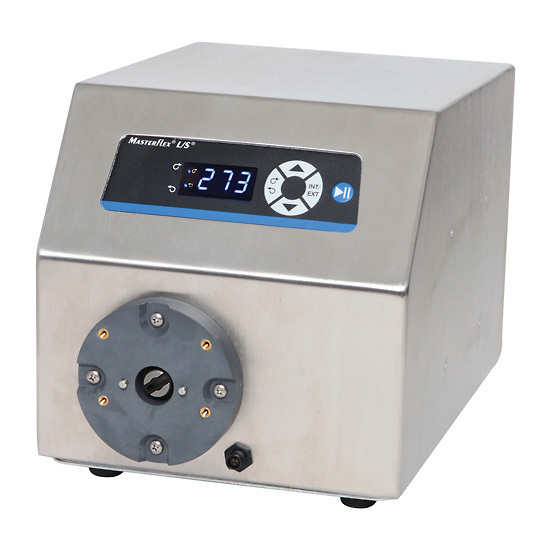

Name: NEW - Masterflex L/S Precision Process Drive 7528-40 - UnumLab
Price: 2100.00 USD
Availability: InStock

Easy-to-use drives offer precise speed control and digital display of rpm—NEMA 4X housings stand up to process and washdown applications.

Flow rate 0.06 to 3400 ml/min (depends on drive rpm and tubing size)
Four digit LED display shows motor rpm—confirm speed setting at a glance
Integrated open-head sensor stops drive motor when pump head is opened
Reversible motor—purge tubing before or after pumping; pump fluid in either direction
LED indicators confirm motor direction
Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications
Separate speed and power (on/off) control—maintain speed setting while turning pump on/off
NEMA 4X (IP66) rated housing
Remote control capabilities via a watertight connector on back of drive

These accurate console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires cable assembly 77300-32. Operation of the integrated open-head sensor requires use of sensor-equipped L/S Easy-Load II pump heads 77200-30 or 77200-32.

Maximum Flow Rate:

3400 ml/min
Power:

90 – 260 VAC; 50/60 Hz; 2.2 A
Description:

Precision Process Drive, Stainless Steel, with Open-Head Sensor; 600 rpm
Cat. No.:

MFLX07528-40
Max. RPM:

600 rpm
No. of Pump Heads Accepted:

2
Housing material:

Stainless steel
Plug type:

US
Open-head sensor:

Yes
Speed:

Variable
Cloud connected:

No
Drive length:

305 mm (12″)
Motor hp:

1/10
Motor:

75 W
Remote I/O:

4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
Reversible motor:

Yes
Type of pump heads accepted:

Standard, Easy-Load, Easy-Load OHS, Easy-Load II, Easy-Load II OHS, High Performance, High Performance OHS, PTFE Tubing, PTFE Diaphragm, Cytoflow
Digital dispensing:

No
Drive width:

229 mm (9″)
Drive IP rating:

IP 66
Control Type:

Digital Variable Speed
Drive height:

235 mm (9.25″)
Pump series:

L/S
Voltage:

90 – 260 VAC
Model:

07528-40
Frequency:

50/60 Hz
Washdown capable:

Yes
Speed control:

±0.25% (1 rpm at 600; 0.1 rpm at 100 rpm)
Current:

2.2 A
Min. RPM:

6 rpm

Weight	20 lbs
Dimensions	20 × 20 × 20 in
Brand	Masterflex
Condition	New
MPN	7528-40
Product Type	4335 – Business & Industrial > Science & Laboratory > Laboratory Equipment
