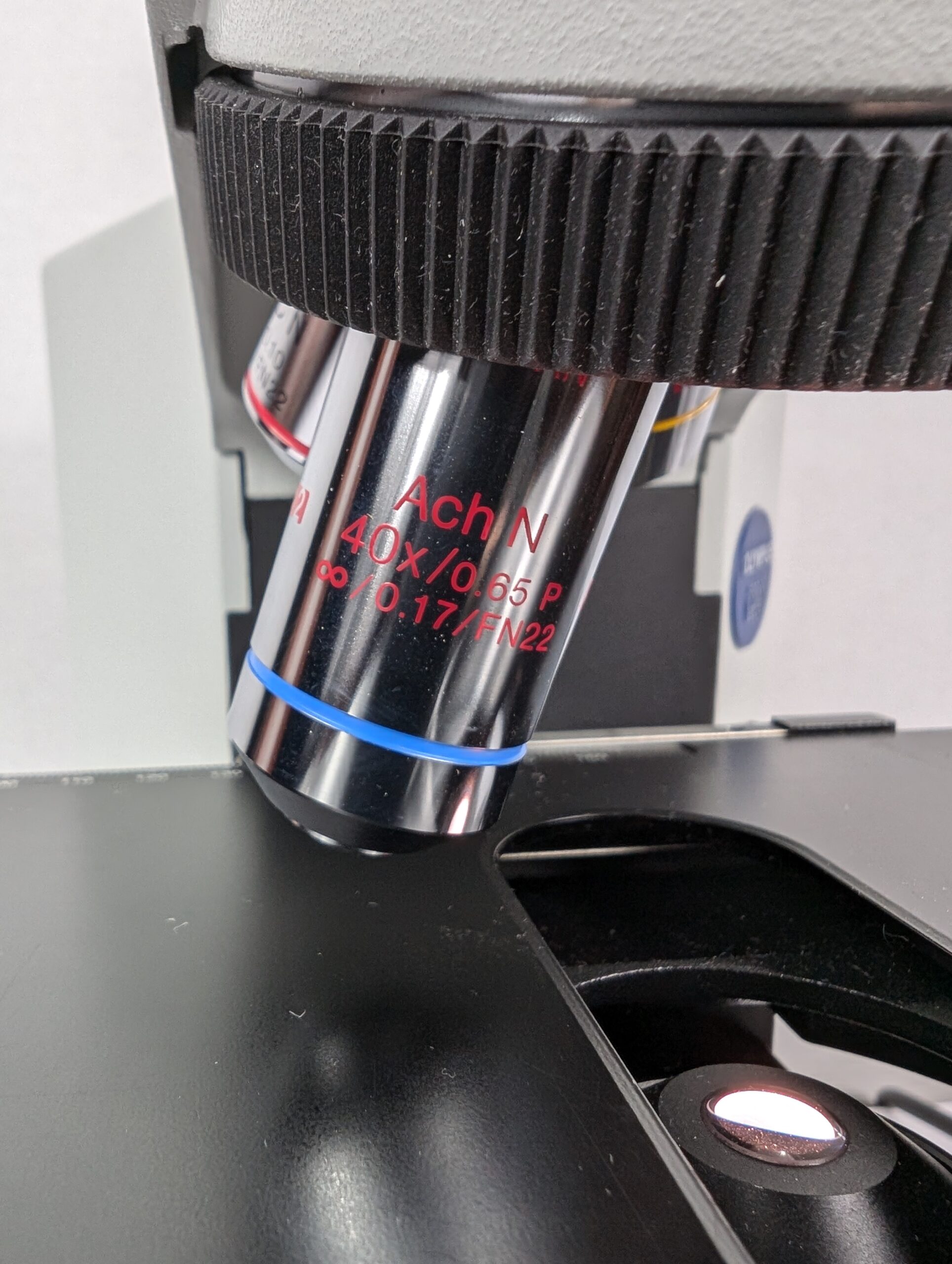

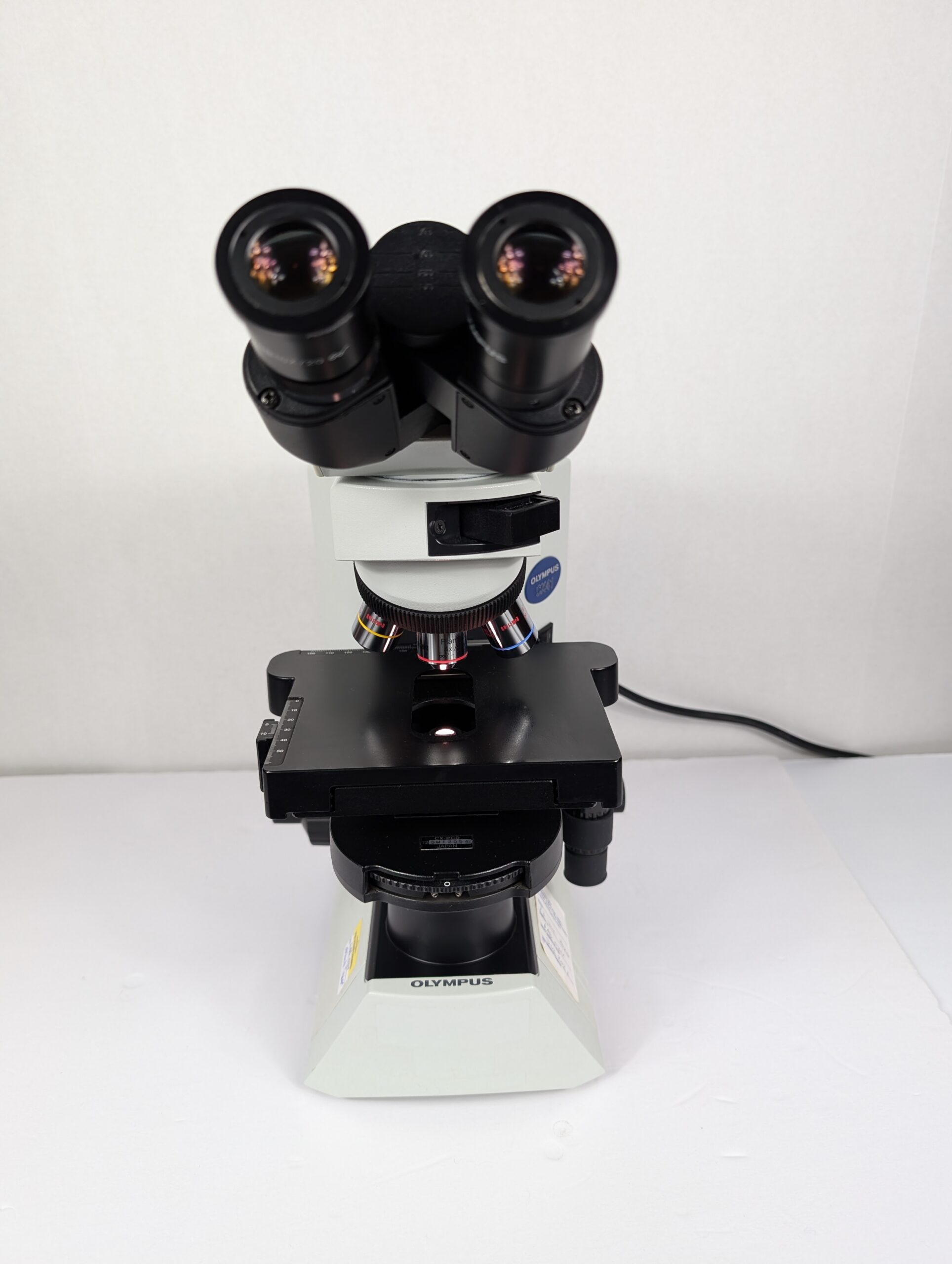

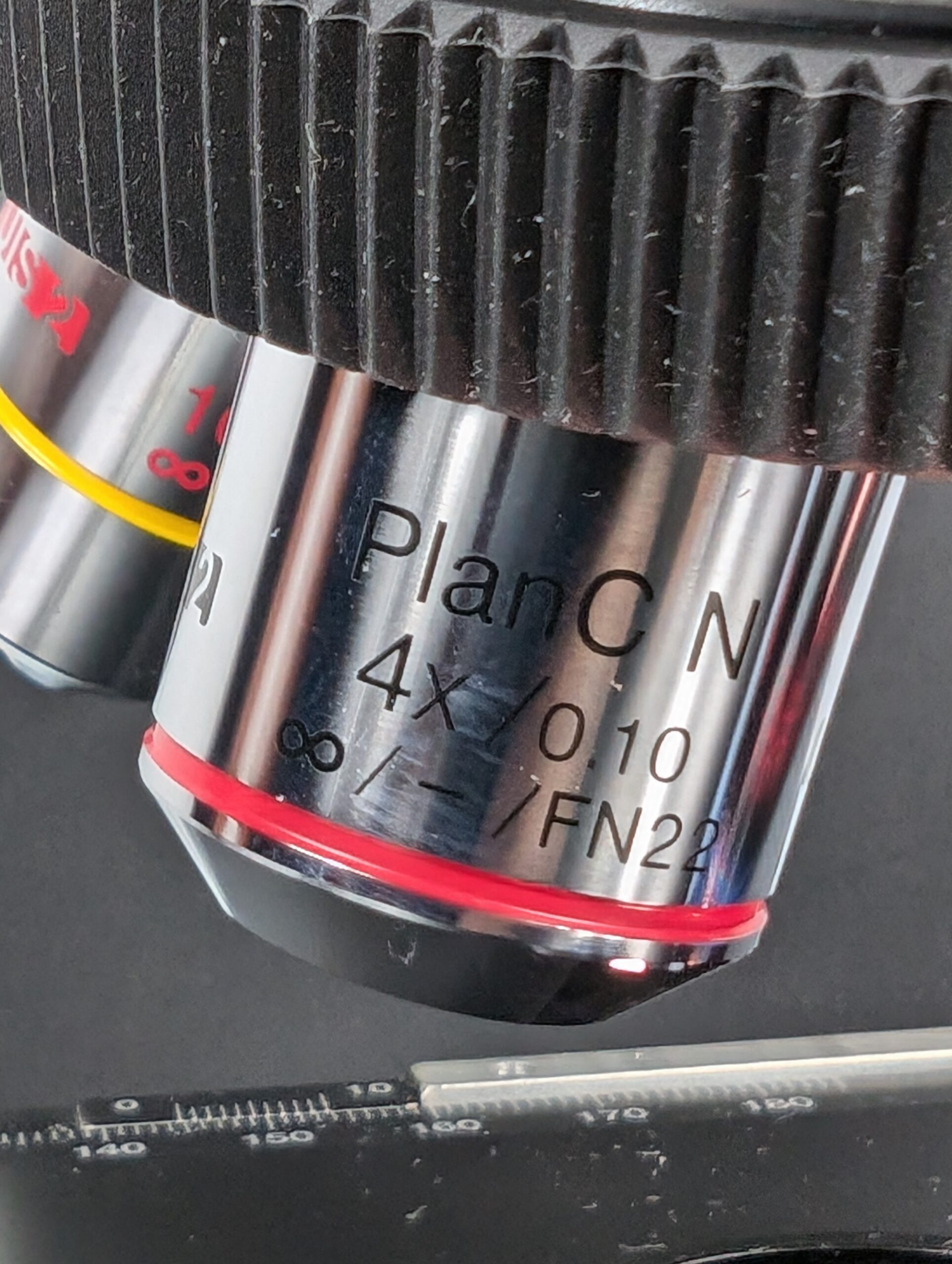

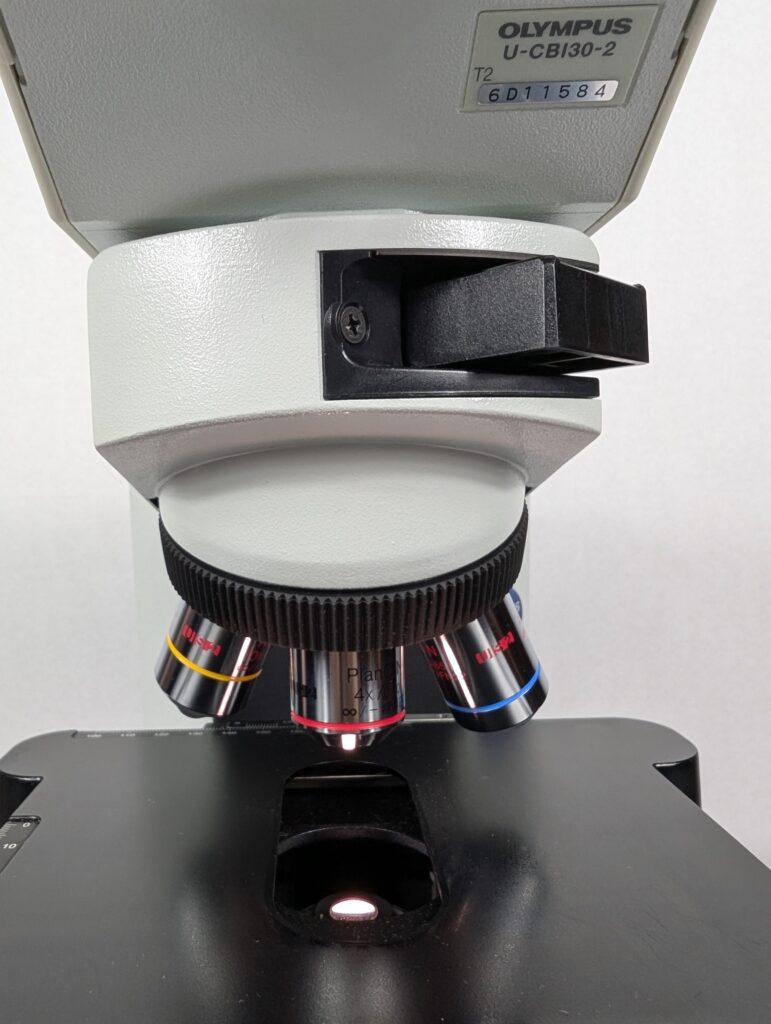

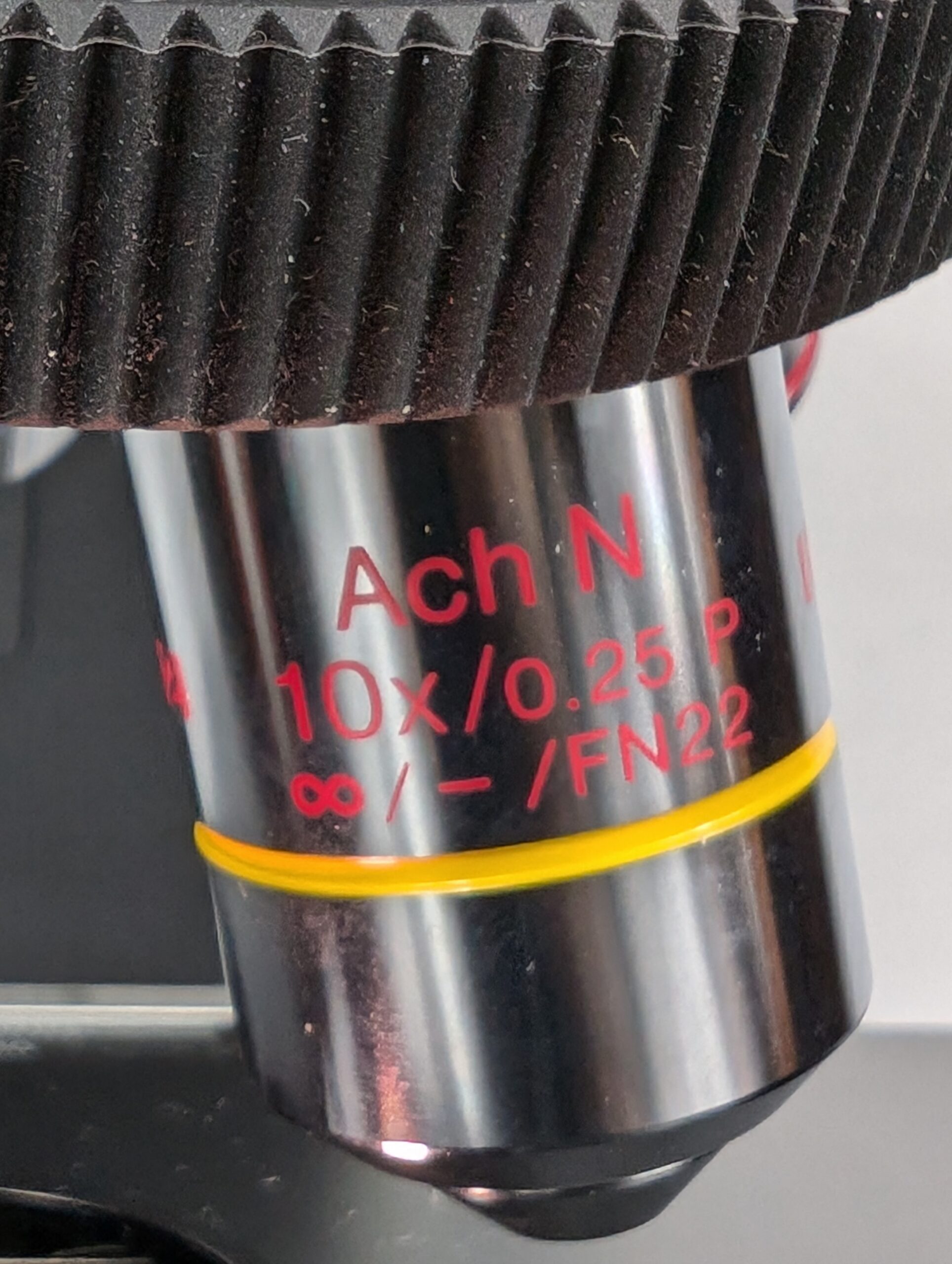

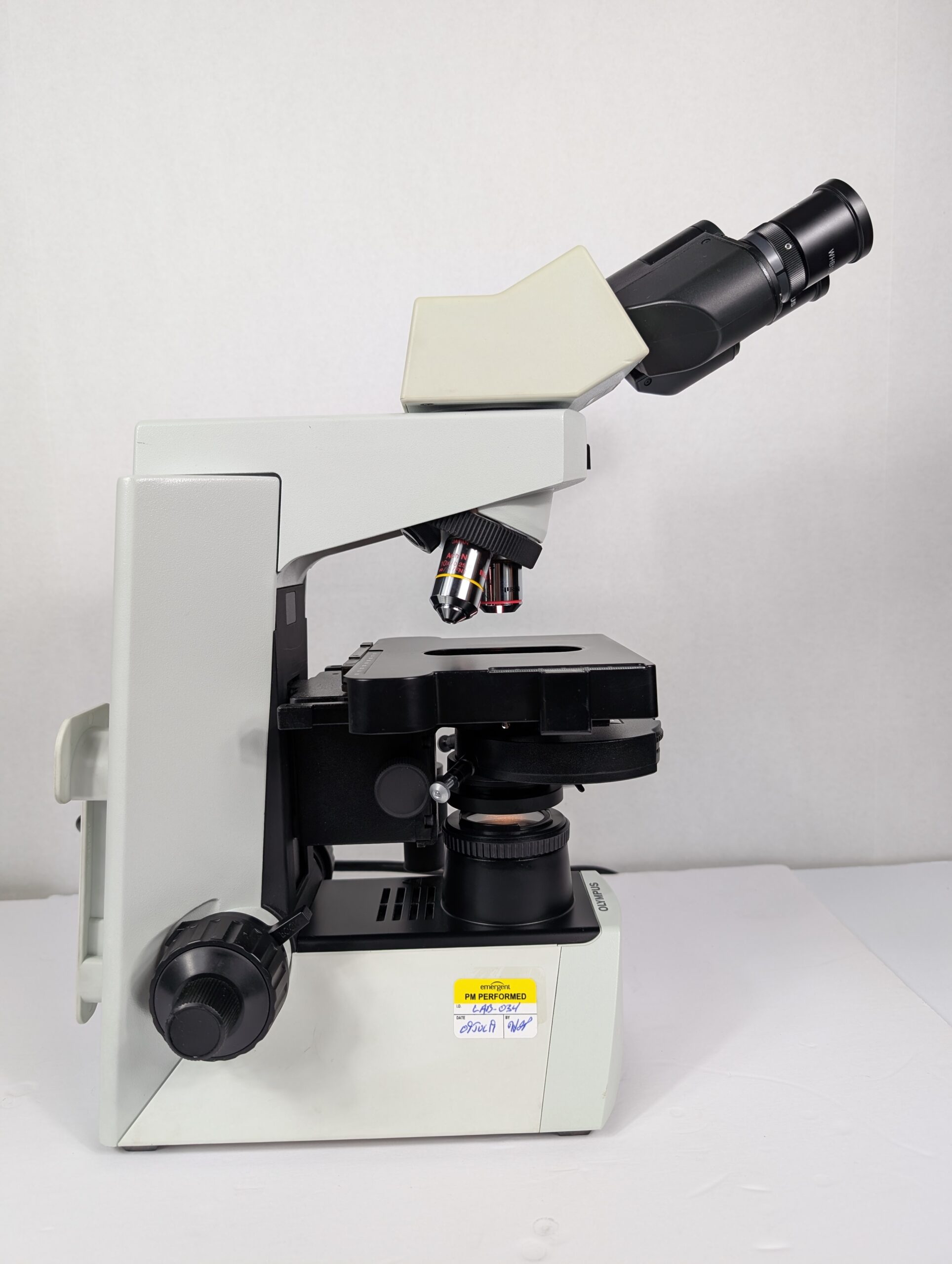

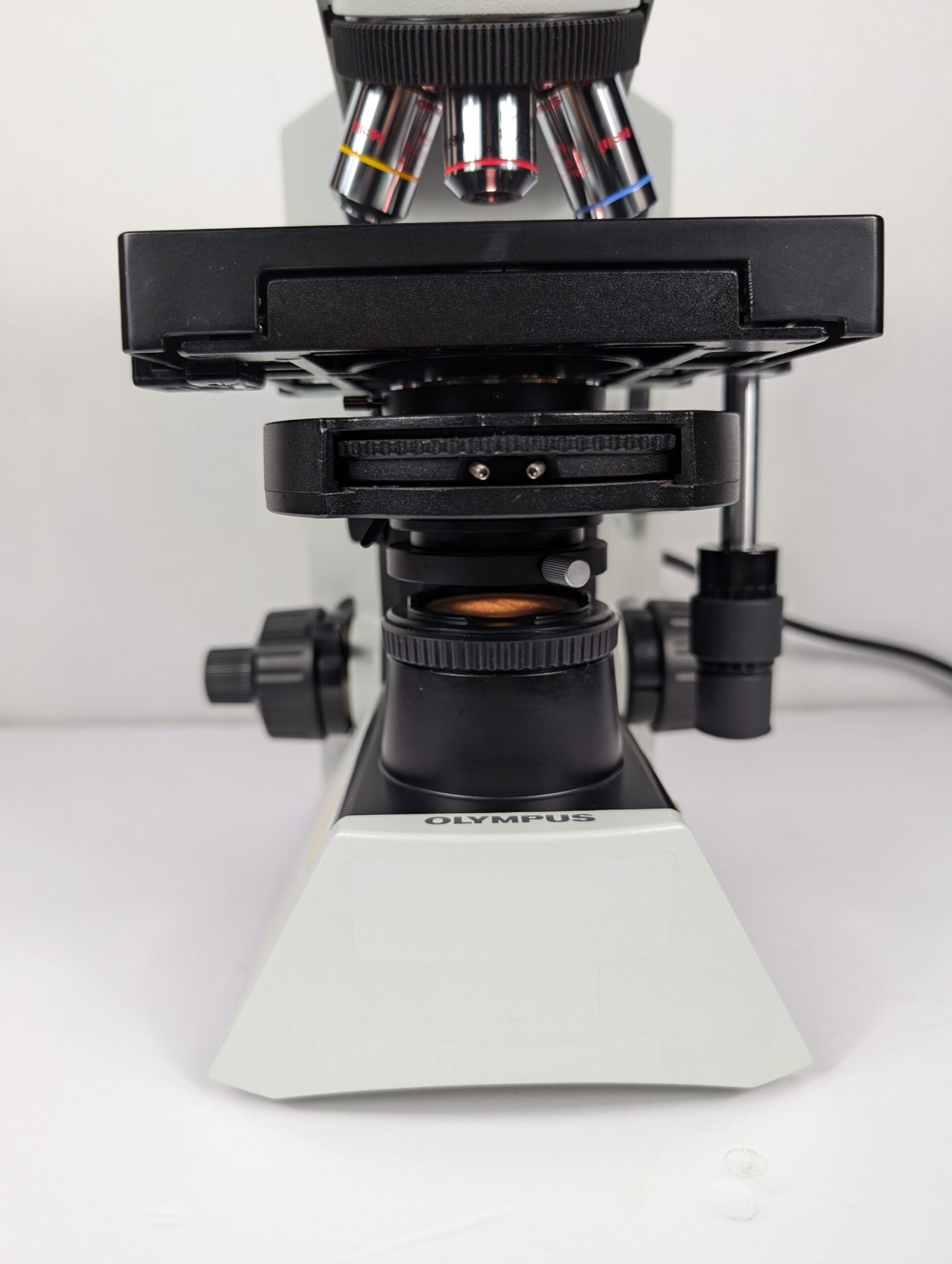

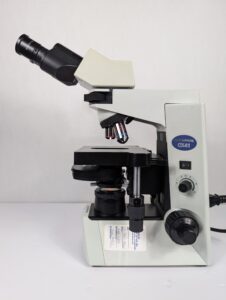

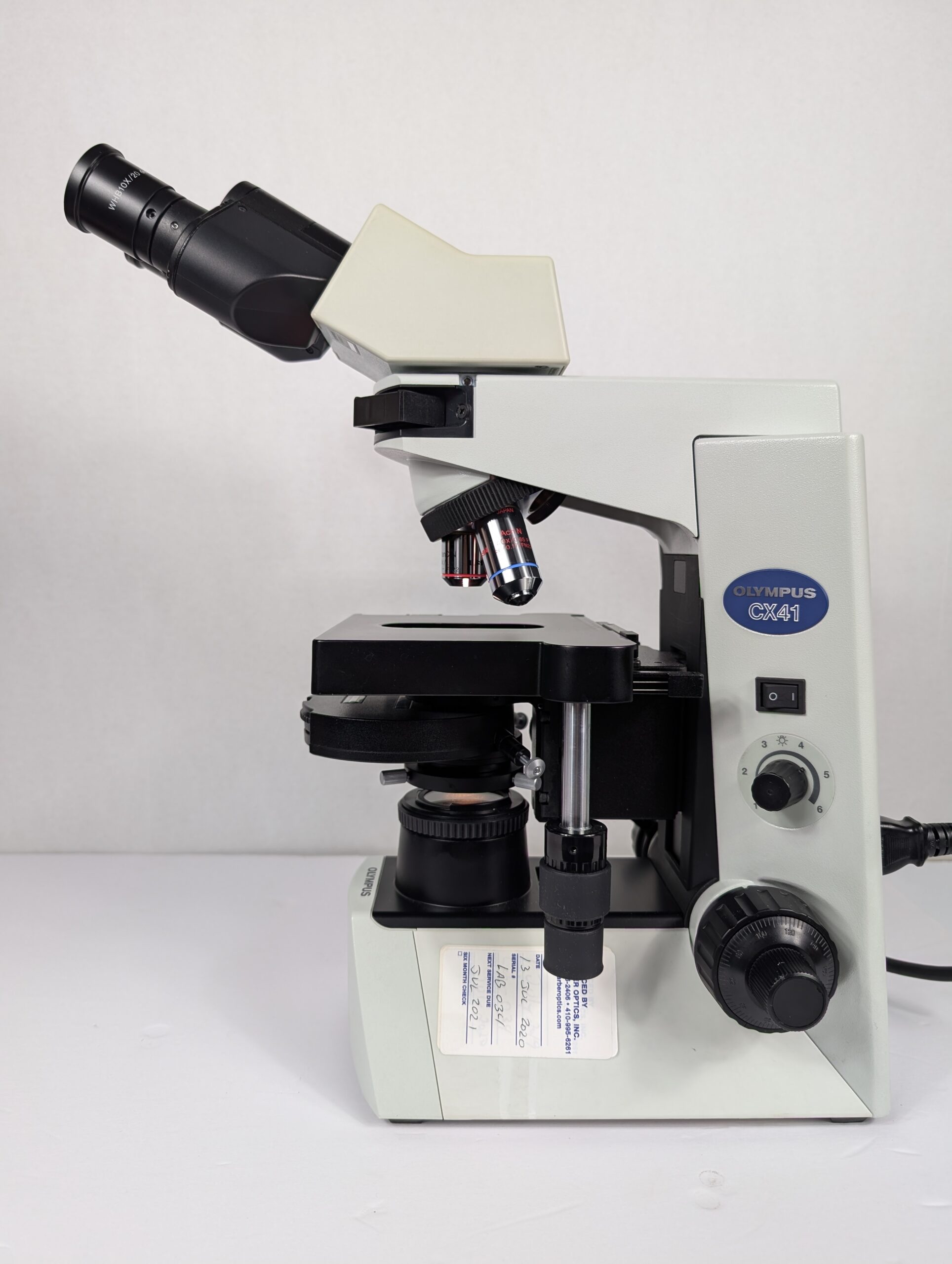

The CX41 biological microscope sets the standard for its class in both basic and system performance. It provides high image clarity in a variety of observation methods, including bright field, phase contrast and fluorescence. This cost-efficient microscope is suitable for routine observation and has an ergonomic design for comfortable long-term use. The renowned UIS2 plan-corrected objectives result in outstanding flat images. Olympus digital camera combinded with software packages to allow efficient documentation, analysis and reporting.
| Observation Method | Brightfield | ✓ | |
|---|---|---|---|
| Darkfield | ✓ | ||
| Phase Contrast | ✓ | ||
| Fluorescence (Blue/Green Excitations) | ✓ | ||
| Simple Polarized Light | ✓ | ||
| Focus | Focusing Mechanism | Stage Focus | ✓ |
| Coarse Handle Stroke |
|
||
| Coarse Handle Stroke per Rotation |
|
||
| Features | •Stage height movement by roller guide (rack & pinion) •Upper limit stopper •Tension adjustment on coarse focus adjustment knob |
||
| Stage | Manual | Manual Stages with Right-Hand Control |
|
| Condenser | Manual | Darkfield Condenser Dry | NA 0.8–0.92/ W.D. 4.52 mm (10X–40X) |
| Abbe Conenser | NA 1.25/ W.D. – (4X–100X) | ||
| Phase Contrast Condenser | NA 1.25/ W.D. 0.5 mm (4X–100X) | ||
| Simple Polarizing Condenser | NA 1.25/ W.D. – (4X–100X) | ||
| Slide Condenser | NA 1.25/ W.D. – (4X–100X) | ||

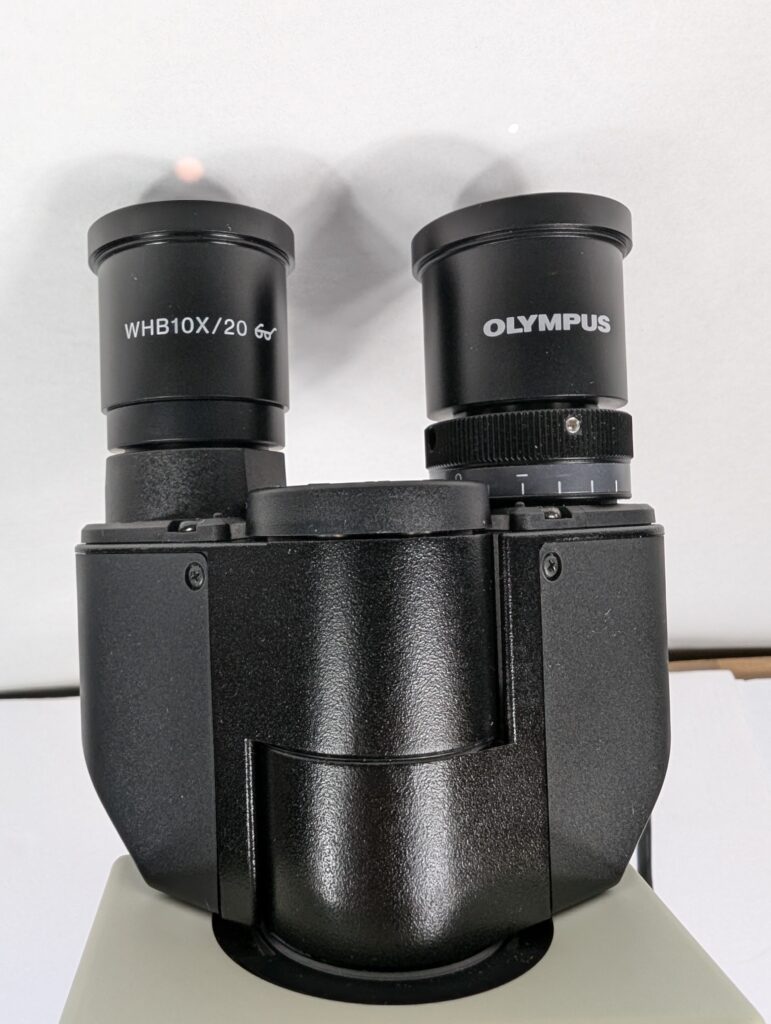

| Observation Tubes | Widefield (FN 22) | Binocular | ✓ |
| Tilting Binocular | ✓ | ||
| Trinocular | ✓ | ||
| Tube Inclination Angle |
|
||
| Trinocular Tube Light Path Selection (Camera : Observation) |
|
||
| Interpupillary Distance Adjustment |
|
||
| Dimensions (W × D × H) | 233 (W) x 367.5 (D) x 432 (H) mm | ||
| Weight | 8.5 kg (Standard Configuration) |
