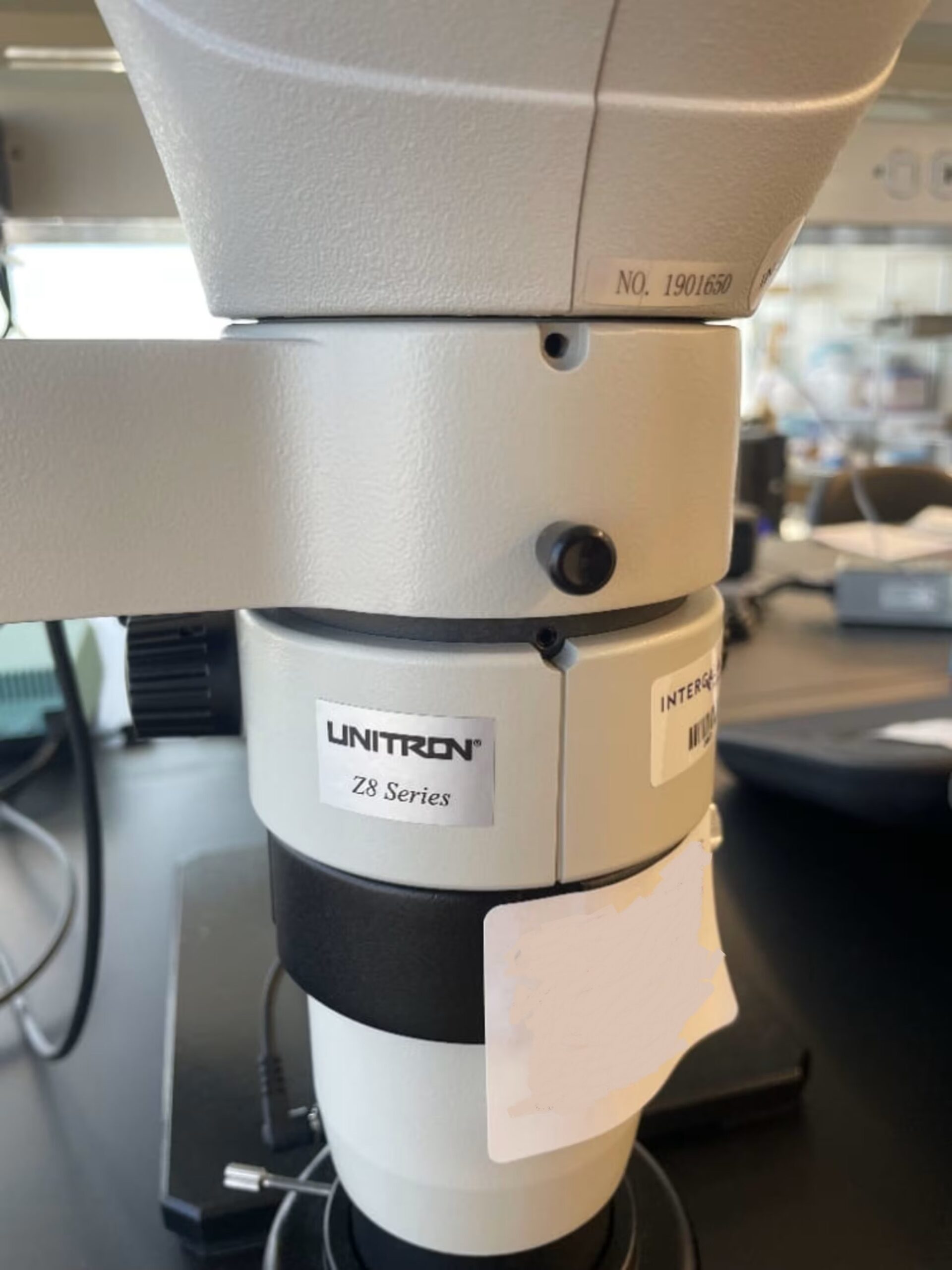

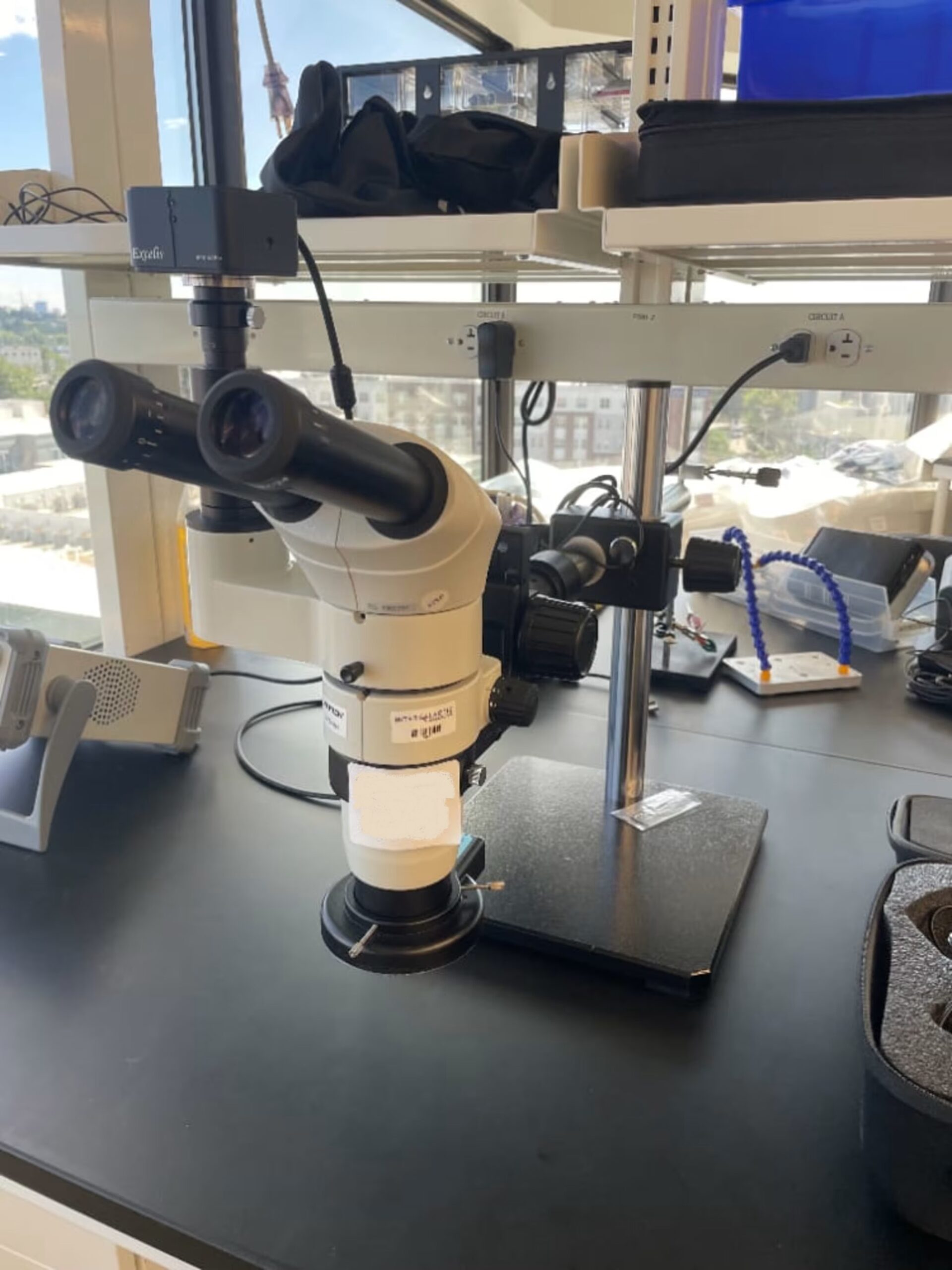

Z8 Binocular Zoom Stereo Microscope
Specifications
- Binocular viewing head, 20° inclined
- Widefield 10x/24mm focusing eyepieces
- 0.8x to 6.4x zoom magnification range
- 8:1 Zoom Ratio
- Magnification Range 8x to 64x (with 10x eyepieces)
- Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective)
- Interpupillary Distance Adjustment 51mm – 75mm
- Click-stops at 1, 2, 3, 4, 5 and 6x positions
- 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional
- 78mm working distance
- Airtight and anti-mold design
- NOTE: All photos shown with optional stands, illumination and accessories
- Shipping size 17x13x11 inches
- Shipping weight 6lbs.
Ball Bearing Boom Stand
Specifications
- Ball bearing boom stand
- Horizontal arm with bonder port
- Base dimensions 10″ x 10″
- Vertical post 15.5″
- Horizontal arm 23″
- Safety collar

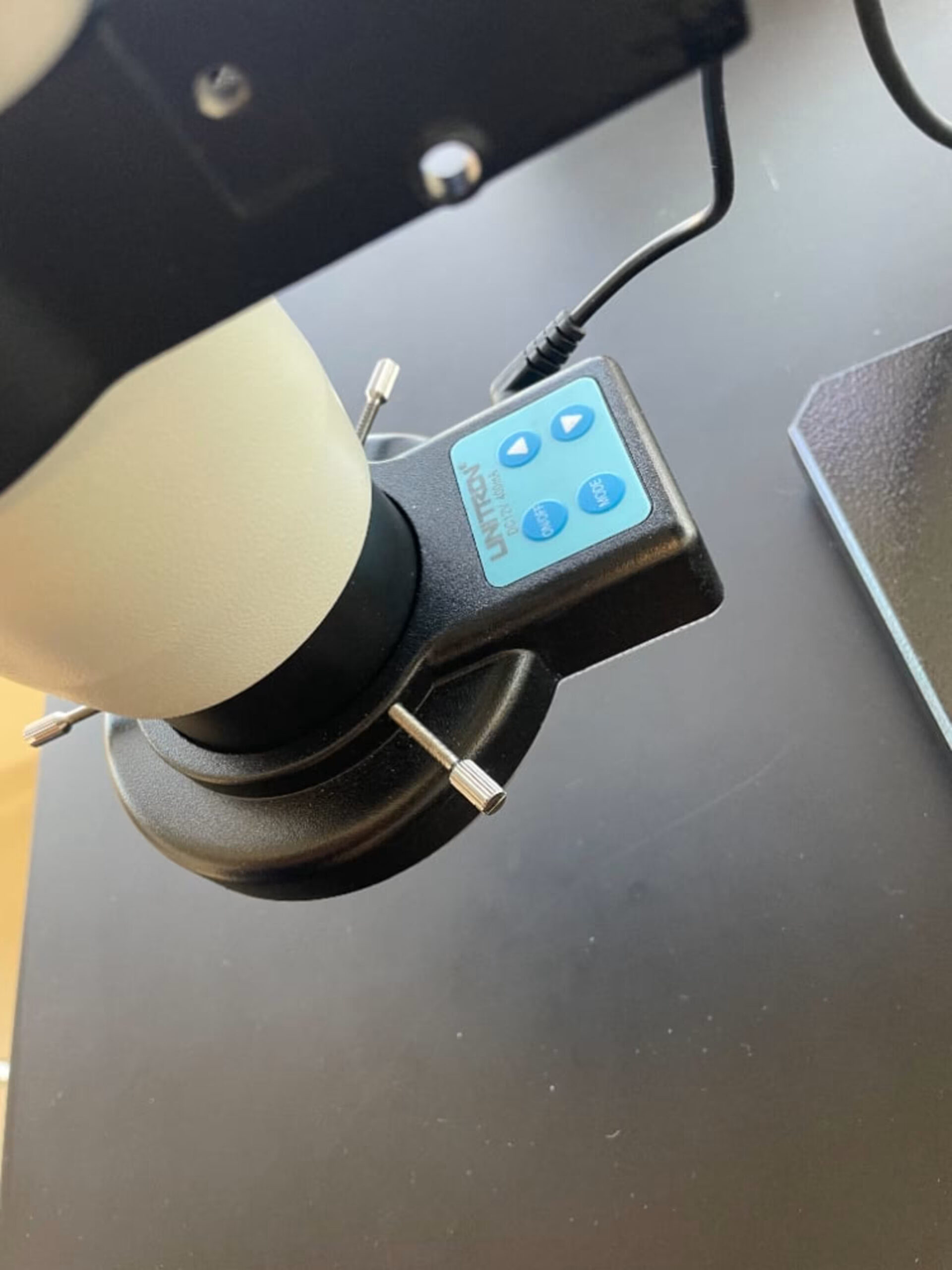

LED Quadrant Ring Light
Specifications
- 72 LED bulbs with 10-step variable intensity light control
- Sectional lighting control; allows users to direct the light from 4 separate quadrants
- 60.5 mm inner diameter
- Color temperature: 6400 Kelvin
- Lamp life: 10,000 hours
- Power supply: AC900-265v 50/60Hz
- Output: 12v 400mA
- RoHS compliant
- Shipping size 11x9x7 inches
- Shipping weight 2lbs

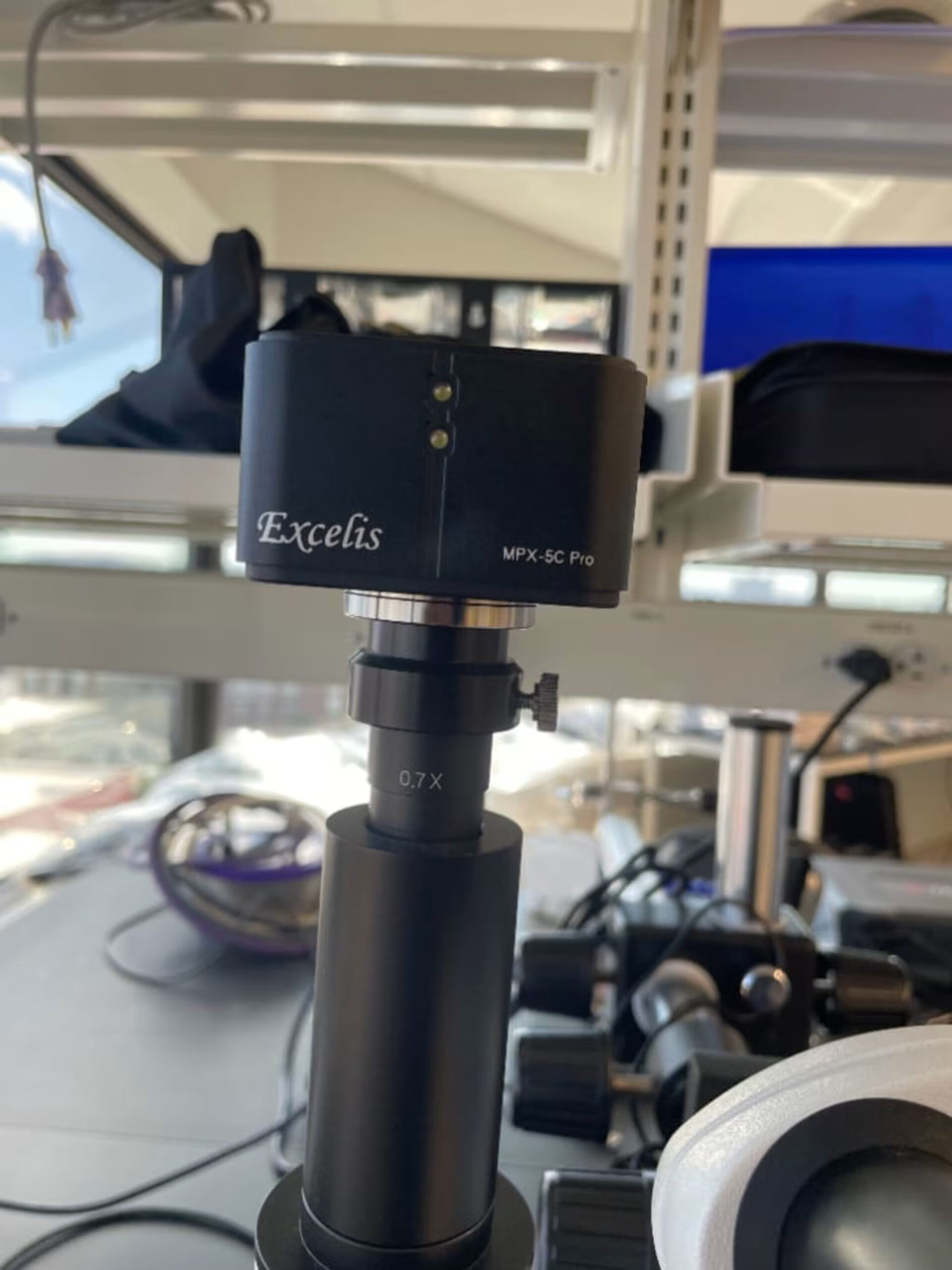

Accu-Scope Excelis™ MPX-5C Pro Camera
The new Excelis™ MPX-5C Pro color camera delivers the performance and features desired in everyday microscopy imaging applications. With a Sony Pregius CMOS sensor at its core, the MPX-5C Pro delivers superb color rendition, extremely low noise and excellent low light level sensitivity. The global shutter, high frame rate and USB 3.0 connectivity ensure stunning live views of the specimen. The new CaptaVision+ software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more!
Specifications
- Outstanding color and performance
- Real-time stitching (via CaptaVision+)
- Depth of field fusion (via CaptaVision+)
- Intelligent flatfield correction (via Captavision+)
- Sony Pregius IMX264LQR-C color CMOS sensor
- View full 5MP live images at 35fps
- Fluorescence imaging with high signal-to-noise, exposure times up to 15 seconds and adjustable Gain.
- New CaptaVision+ Imaging Software delivers full camera control, advanced image processing, customizable user interface, static and dynamic measurements with layers, and more (requires PC or Mac; not included).
- Standard C-mount easily adapts to most microscopes; 0.65x camera adapter recommended.
