Get both speed and precision in one moisture analyzer. The OHAUS™ MB90 uses halogen heating which distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements. Designed for tool-free cleaning, the components can be easily removed for quick and easy maintenance. Operation is intuitive with the icon-driven menu navigation on the touchscreen display.
- ABS top housing, stainless steel pan support, in-use cover
- Storage up to 2 methods and 100 test results for each method
- User-guide, 13 operational languages
- Precisely controlled halogen heating dries samples quickly and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability

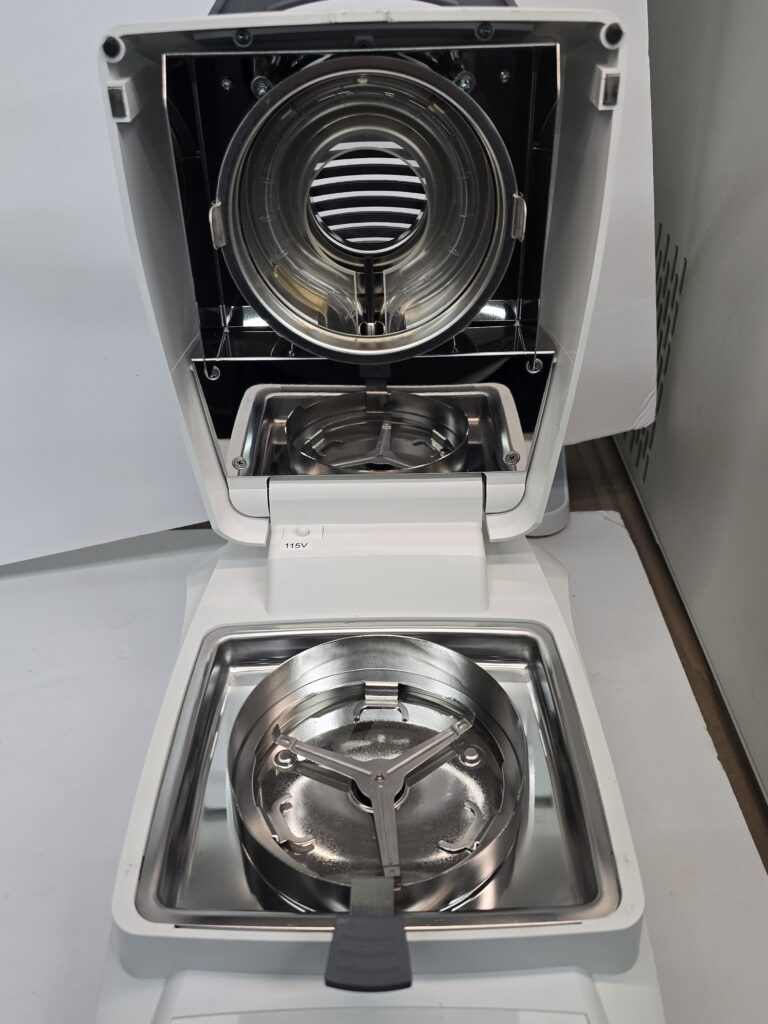

- Effortless Maintenance: removable pan handler and heating chamber components that make cleaning quick and easy, with no tools needed

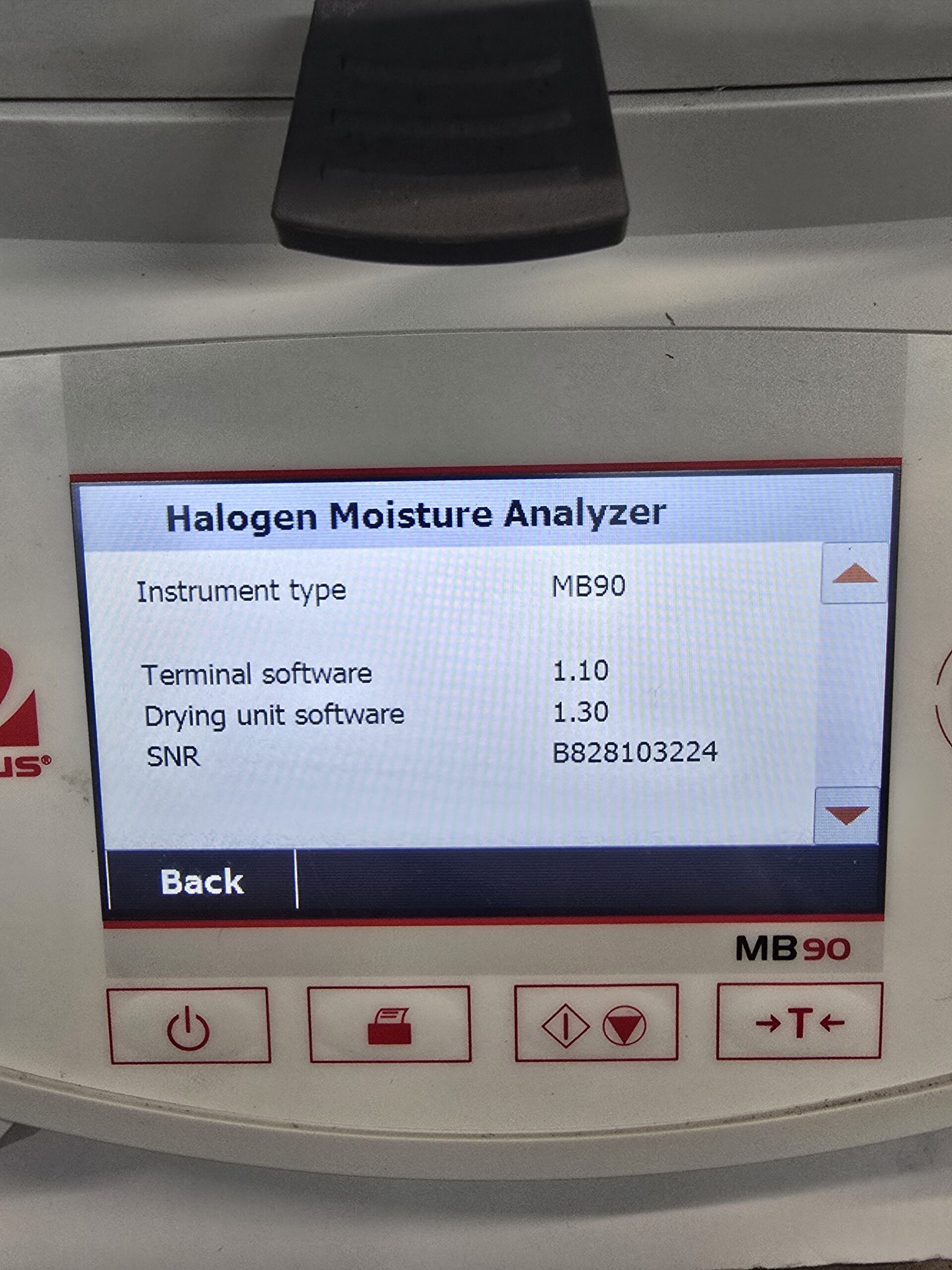

- Icon-based menu navigation on the easy-to-read touchscreen display makes operation intuitive
- Perform routine sample testing in three easy steps; no training required
- Two drying profiles: Customize heating of specific samples with temperature control for one-step drying
- Customize your own test endpoint criteria to automatically end the test once moisture loss is no longer detected

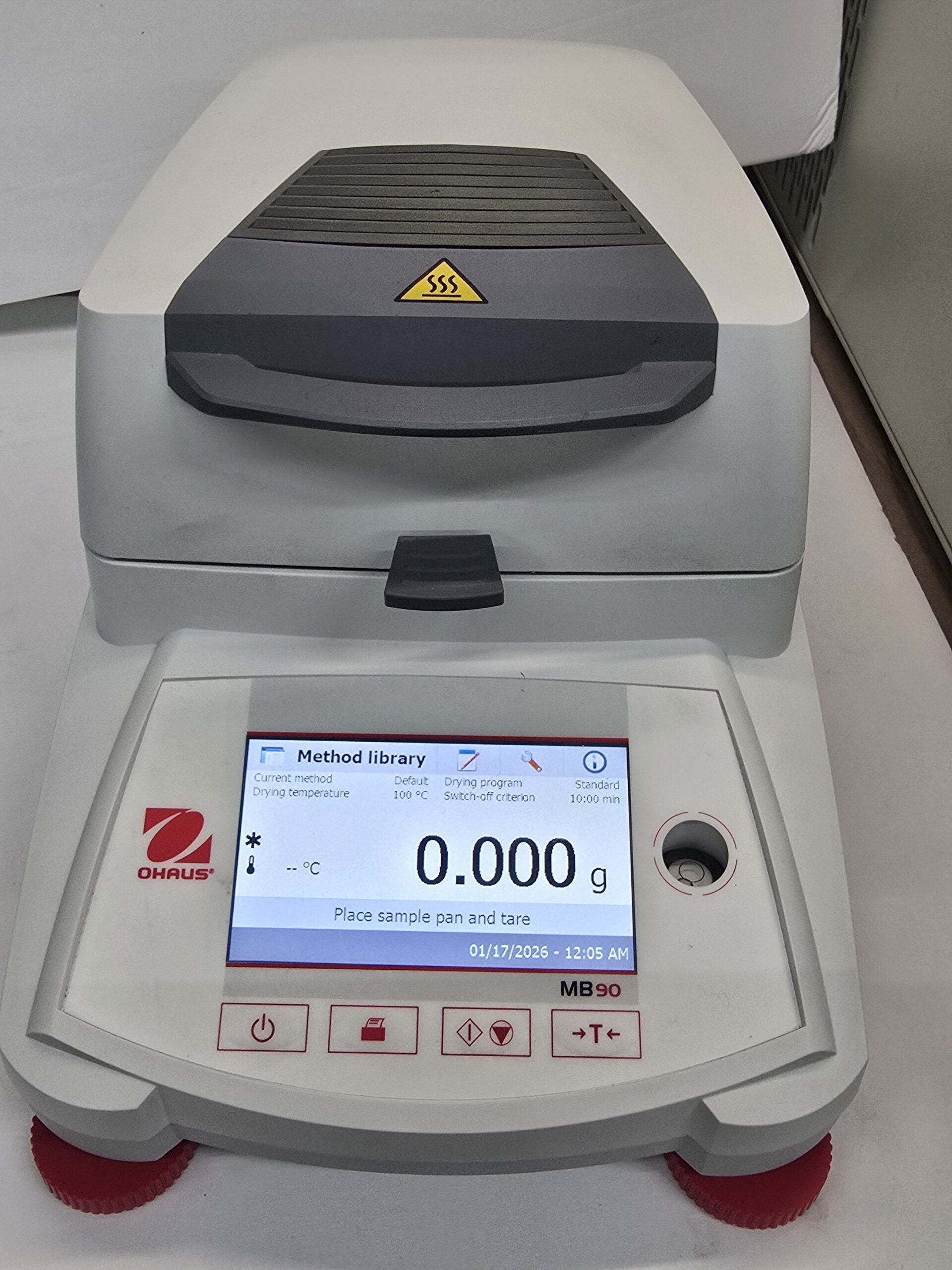

- Wide, bright touchscreen display and intuitive menu navigation for fast, accurate moisture analysis

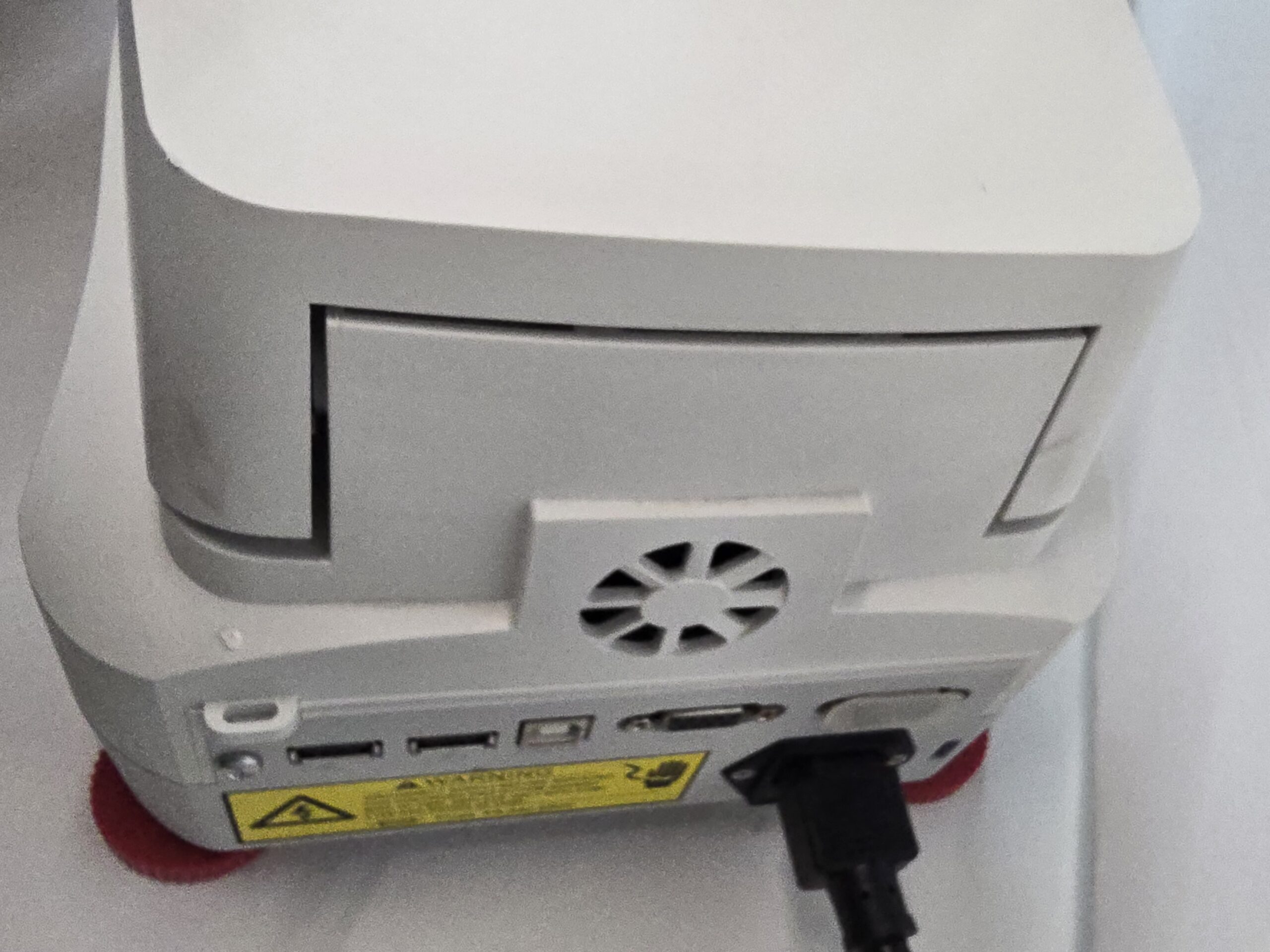

- Versatile connectivity options to handle data collection and transfer needs; USB and RS232 Ports; Data collection and transfer
| Model |
MB90 |
| Outputs |
RS232, USB device, USB host |
| Repeatability |
0.18% (3g sample), 0.02% (10g sample) |
| Certifications/Compliance |
IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 |
| Dimensions (L x W x H) |
8.3 x 14.0 x 7.7 in. (211 x 355 x 180 mm) |
| Electrical Requirements |
120/240 VAC 50/60 Hz |
| Readability |
0.01%/0.001 g |
| Display Type |
Digital LCD |
| Capacity |
90 g |
| Humidity Range |
Moisture Range: 0.01% to 100% (0.01% to 1000% for |
| Net Weight (English) |
11.5 lb. |
| Sample Size |
0.5 g to 90 g |
| Temperature Range (Metric) |
10°C to 40°C |
| Type |
Moisture Balances |
| Voltage |
120 V |
