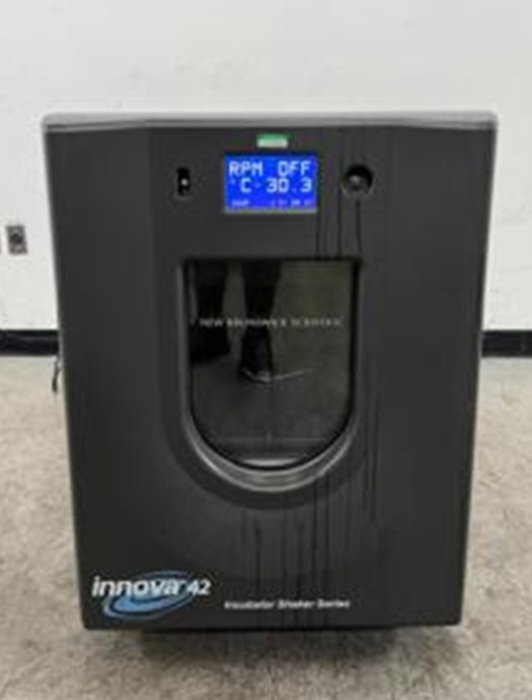

Eppendor New Brunswick Innova 42 Stackable Incubator Shaker

Versatile and reliable. The Eppendorf Innova 42  incubator shakers are stackable, can be placed on or under the bench, and come with a static shelf to be used to incubate agar plates while shaking cultures in flasks (Optional: static culture drawer, gassing manifold, remote alarm, and humidity monitor and drip pan.

• High capacity in a small footprint: for example, 4 x 5 L or 2 x 6 L flasks on universal platform; device footprint 4731 cm² /733 in.² (63.5 cm/25 in. width, 74.5 cm/29.3 in. depth)
• Ergonomical and safe interface handling: Top mounted controls and display make bending down unnecessary during handling, avoids accidental parameter changes, and can be reached easily even in a double stack
• Easy to clean: Spill diverter and drainable built-in spill pan with rounded corners protect the drive from accidental spills (can be used as a water reservoir to reduce sample evaporation); airflow UV-germicidal light optional
• Lab position flexibility: Lab position on or under bench, 2x stackable

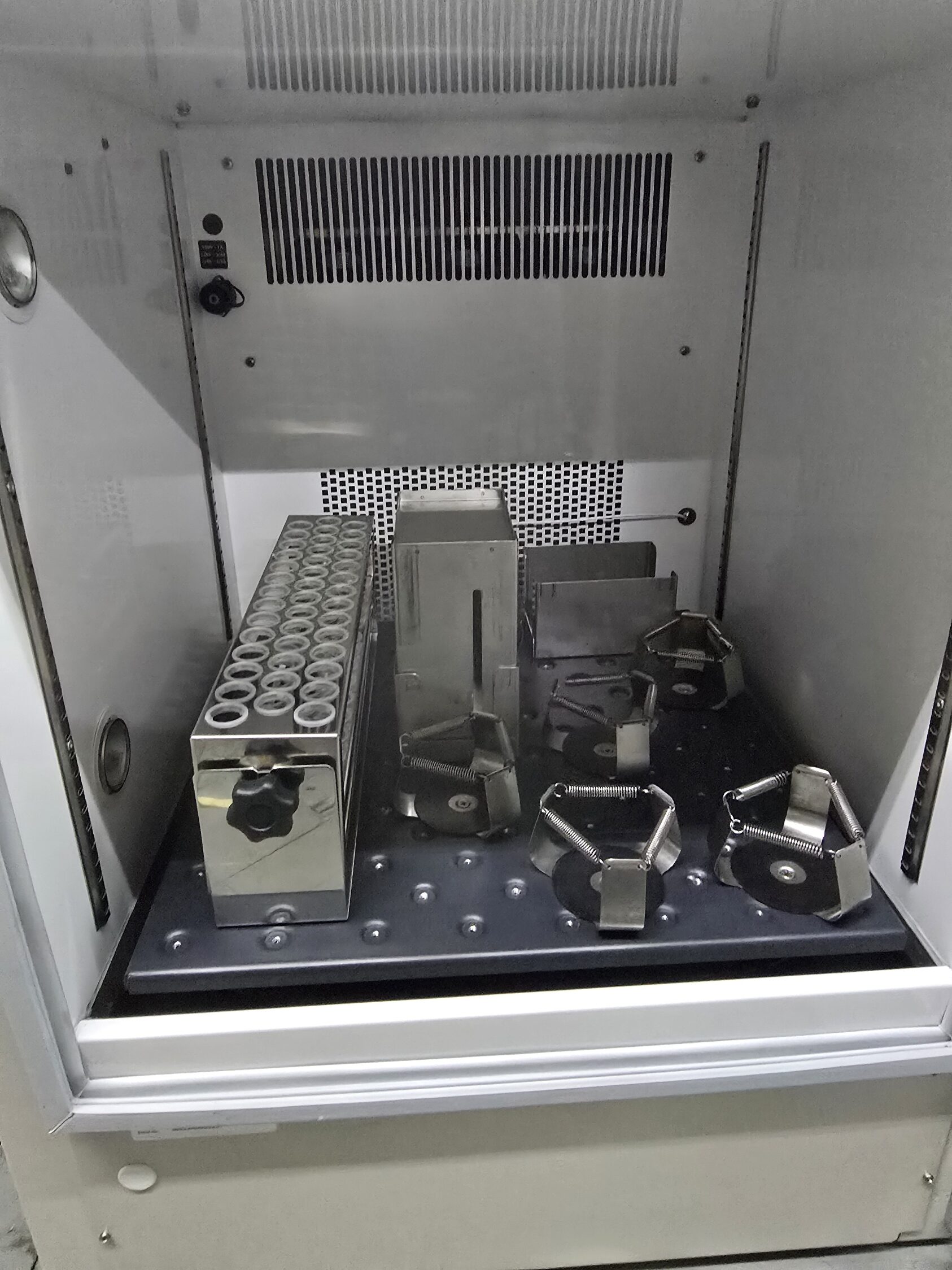

• Parallel static cultivation: One height adjustable static shelf included, optional culture drawer and additional shelves available
• Sample evaporation protection: Bottom spill pan usable as water reservoir; optional culture drawer, for Agar plates, for example
• Visual sample control: Large viewing window and internal light provide easy viewing of samples without the need to open the door
• Reliable 24/7 with high loads: Proven and tested Innova triple eccentric counterbalanced drive (three weight-supporting shafts), max. load 15 kg
• Programmability: Continuous, timed, or multi-step programming (15 steps), store up to four programs
• Options and Accessories: Orbit 19 or 25 mm, photosynthetic light bank, UV germicidal light, culture drawer for evaporation protection of Agar plates, additional static shelves (one included), humidity monitoring, remote monitoring with VisioNize™ Lab Suite and more
• Speed: 25 to 400 rpm, 25 to 300 rpm when using flasks >500 mL in stacked devices
• Certifications/Compliance: 2014/35/EU: EN 61010-1, EN 61010-2-010, EN 61010-2-051, 2014/30/EU: EN 61326-1, EN 55011 (Class A), 2011/65/EU: EN IEC 63000, IEC 61010-1, IEC 61010-2-010, IEC 61010-2-051, UL 61010-1, UL 61010-2-010, UL 61010-2-051, CAN/CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-010, CSA C22.2 No. 61010-2-051, IEC 61326-1, CISPR 11, FCC 47 CFR Part 15 (Class A)

Specifications

Orbit	25 mm
Load Bearing Capacity (Metric)	9 to 15.8 kg
Speed Range	25 to 400 rpm
Electrical Requirements	120 V 50/60 Hz
Voltage	120 V
Temperature Range (Metric)	10°C above ambient to 80°C
Holds	6 L Flasks
Product Type	Incubator Shaker
Load Bearing Capacity (English)	20 to 35 lb.
Temperature Range (English)	50°F below ambient to 176°F
Temperature Uniformity	±0.25°C at 37°C
Frequency	60 Hz
Material	Aluminum Platform
Dimensions (D x W x H) Interior	51.5 x 51.7 x 47.7 cm (20.3 x 20.4 x 18.8 in.)
Dimensions (LxW) Platform	46 x 46 cm (18 x 18 in.)
Dimensions (L x W x H)	63.5 x 74.5 x 81.8 cm / 25 x 29.3 x 32.8 in.
Height (English)	32.2 in.
Height (English) Interior	18.8 in.
Height (Metric)	81.8 cm
Height (Metric) Interior	47.7 cm
Width (English)	25 in.
Width (English) Interior	20.4 in.
Width (Metric)	63.5 cm
Width (Metric) Interior	51.7 cm
Weight (English)	217 lb.
Weight (Metric)	98.5 kg
Model	Innova 42
Display	LED Digital Electric Display
For Use With (Application)	Plasmid DNA production and protein expression, Biofuel research, Grow bacteria, yeast, fungus, photosynthetic organisms
Humidity Range	20 to 80%, Non-condensing
Includes	Accessories
Interface	USB, Ethernet
Platform Style	Universal/Dedicated
Style	Universal/Dedicated
Timer Range	0.01 sec. to 95 hr. 59 min., Continuous
Refrigerated	No
