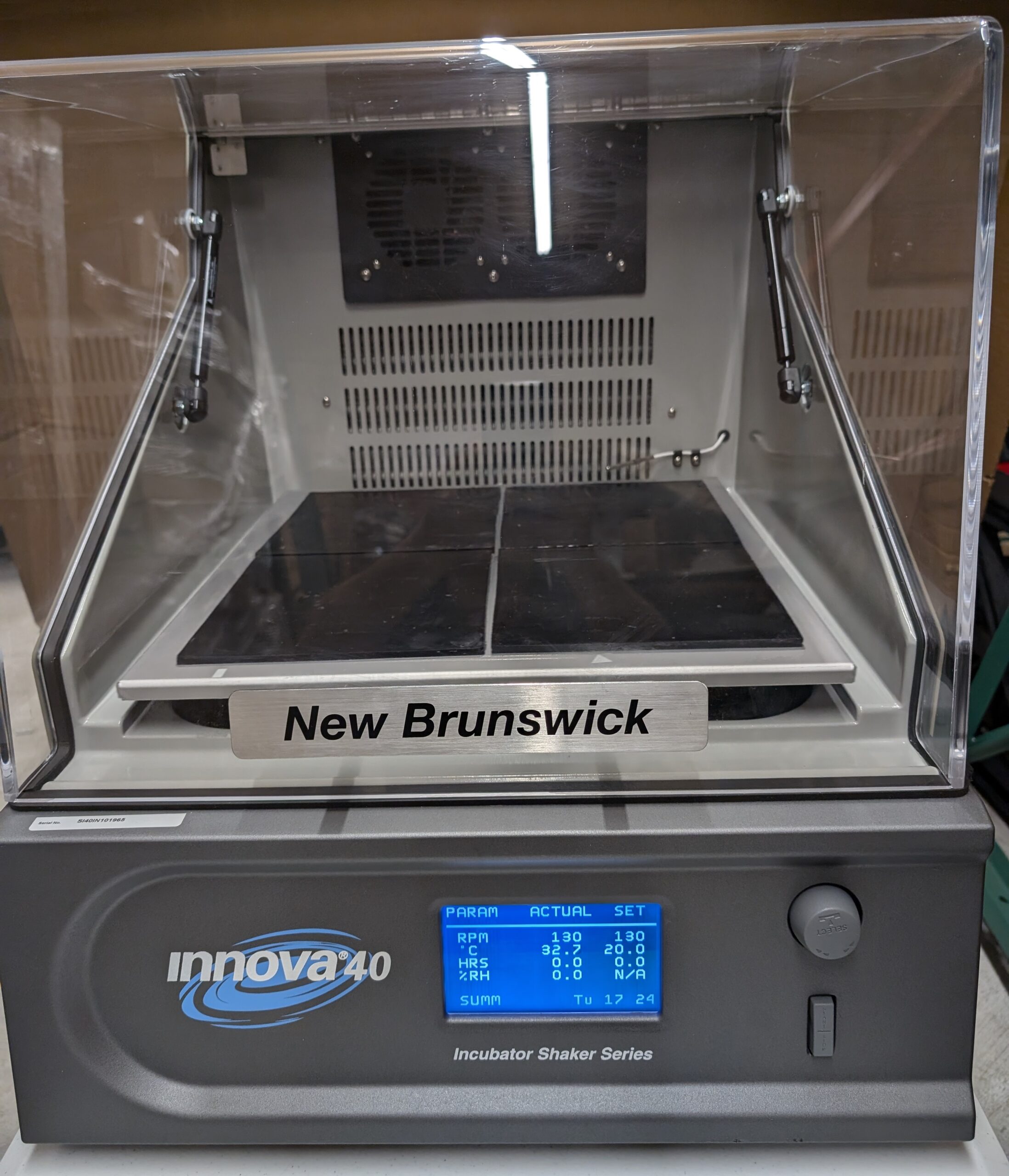

- Check your samples: Large, insulated, and scratch-resistent viewing provides a clear view of the chamber contents (device stops when lid is opened); holds flasks up to 3 L
- Built to perform and last: Innova triple-eccentric counterbalanced drive in cast iron housing provides vibration and trouble-free operation for years
- Tight temperature and speed control: Temperature accuracy and uniformity: ±0.1 °C and ±0.25 °C (at 37 °C; independent over-temperature cutoff included), speed accuracy 1 rpm
- Save space on your lab bench: Small footprint of 55.9 × 76.2 cm / 22 × 30 in (W x D) that even works on narrow benches
- Easy interface handling and programming: Controls and display make it easy to view, set and program parameters − continuous, timed, or multi-step programs with up to 15 steps (four programs storable)
- Minimizes splashing and mechanical damage: Acceleration/deceleration circuit prevents sudden starts and stops
- Easy to move: 60/79 kg weight (incubated/refrigerated version)
- Optional drip pan: Protects the shaker drive below by collecting spills from the overlying universal platform
- Certified: Meets cETL, UL, CSA and CE standards
- Reliable service: For service agreements including annual full preventive maintenance or IQ/OQ GxP qualification contact your Eppendorf representative
| Specifications | Innova® 40R, orbit diameter 1.9 cm (3/4 in) |
|---|
| External height (with lid/door open) | 101.6 cm (40 in) |
| Timer | 0.01 – 99.59 h, continuous |
| Power supply | 120 V, 50/60 Hz |
| Dimensions (W × D × H) | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in |
| Product weight | 79.4 kg / 175 lb |
| Temperature range | 15 °C below ambient to 80 °C (min. 4 °C) |
| Audible and visual alarms | yes |
| Temperature uniformity | ±0.25 °C at 37 °C |
| Available program modes | • Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
| Drive mechanism | triple-eccentric counterbalanced drive |
| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) | B |
| Memory | non volatile with automatic power failure restart |
| Motor type | Solid state, DC brushless motor |
| Platform size (cm/in) | 46 × 46 cm (18 × 18 in) |
| Refrigerated | yes |
| Slide-out platform | no |
| Door opening | top opening hood |
| Speed range | 25 up to 500 rpm (depending on load) |
| Multi-step programming | yes |
| Steps per program | 15 |
| Stored programs | 4 |
| cETLus and CE marked | yes |
| Capacity | medium |
| Programming steps / storable programs | 15/4 |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® box enabled |
| Temperature range | 15 °C below ambient to 80 °C (min. 4 °C) |
|
Agitation |
|
| Orbit | 1.9 cm (0.75 in) |
