NEW – Millipore Opticap XL 4 Capsule Filter, Durapore 0.22 µm, 1-1/2″ Sanitary Flange, KVGLA04TT3 (Box of 3)

Millipore Opticap XL 4 Capsule Filter, Durapore 0.22 µm, 1-1/2″ Sanitary Flange (KVGLA04TT3), Box of 3

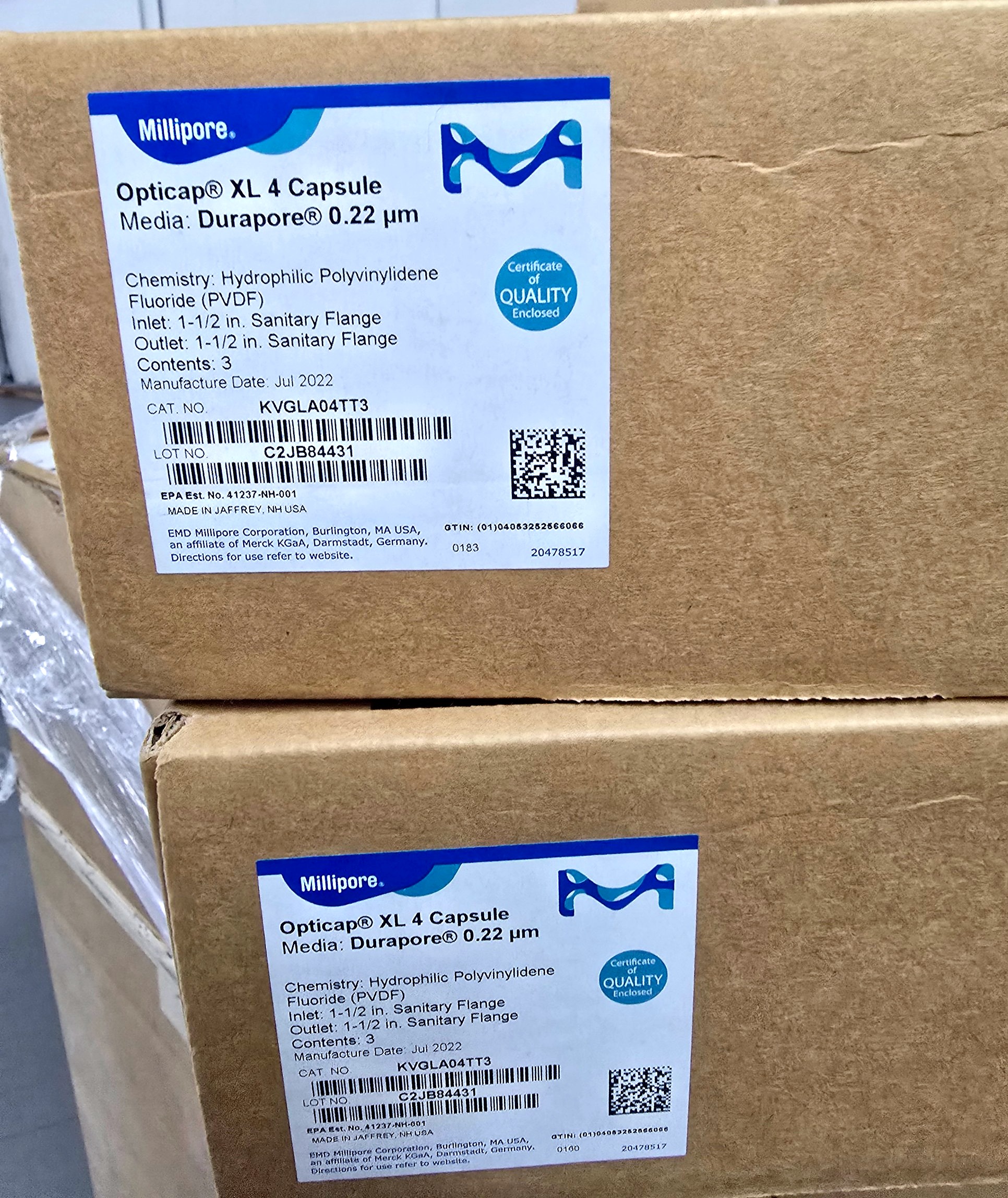

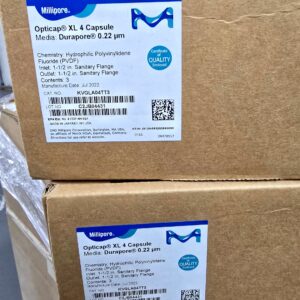

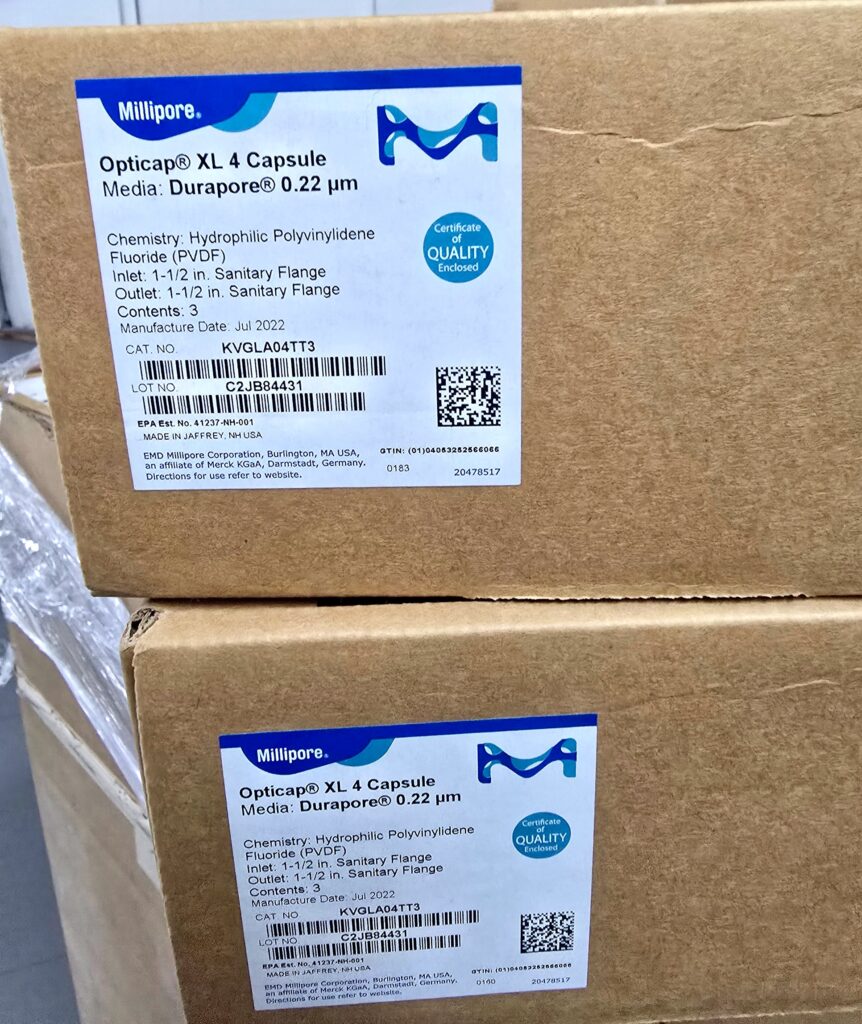

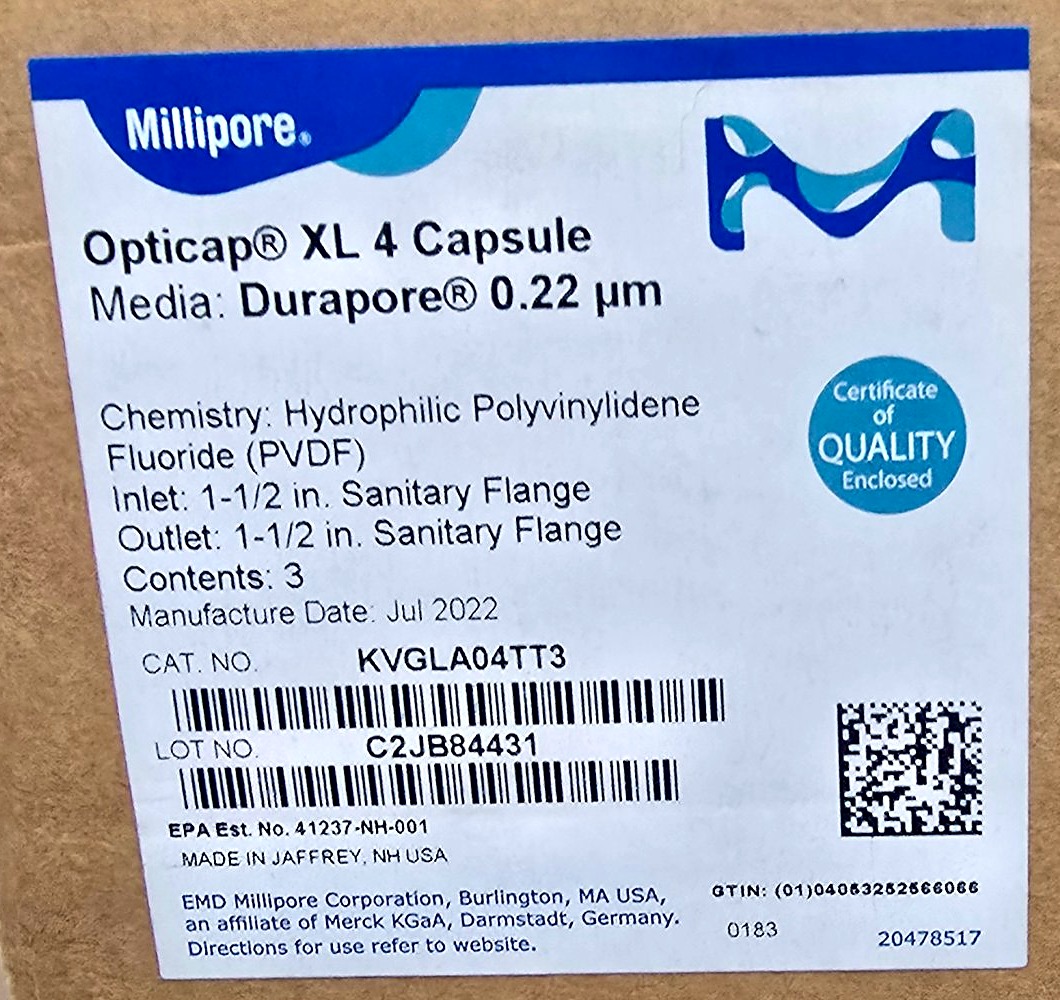

New, factory-sealed boxes of Millipore (MilliporeSigma) Opticap XL 4 capsule filters with Durapore 0.22 µm hydrophilic PVDF membrane. Each box contains 3 capsules and a Certificate of Quality. These are sterilizing-grade capsules for bioprocess bioburden reduction and sterile filtration of buffers, media and aqueous solutions. 3 boxes available; price is per box of 3.

Durapore Low-Binding PVDF Membrane

The hydrophilic PVDF membrane has very low protein binding and low extractables, which suits protein solutions, buffers and final product filtration. It retains a minimum Brevundimonas diminuta challenge of 1 x 10⁷ CFU/cm² per ASTM F838.

Ready for Sanitary Process Lines

1-1/2″ sanitary (tri-clamp) flanges on the inlet and outlet connect directly to standard sanitary tubing and manifolds. The polypropylene capsule is self-contained and disposable, with no housing to clean or validate. It can be autoclaved up to three 60-minute cycles at 126°C.

Specifications

• Manufacturer: Millipore (EMD Millipore Corp., an affiliate of Merck KGaA), made in Jaffrey, NH, USA
• Catalog No.: KVGLA04TT3 (replaces KVGL04TC3)
• Product: Opticap XL 4 capsule (4 in./10 cm nominal cartridge length), non-sterile
• Membrane: Durapore hydrophilic polyvinylidene fluoride (PVDF), 0.22 µm
• Filtration Area: 0.19 m² (0.194 m²)
• Inlet / Outlet: 1-1/2 in. (38 mm) sanitary flange
• Dimensions: approx. 19.6 cm (7.7 in.) inlet to outlet
• Max Inlet Pressure: 80 psi (5.5 bar) at 25°C; 15 psi (1.0 bar) at 80°C
• Max Differential Pressure: 80 psid (5.5 bar) forward at 25°C; 50 psid (3.4 bar) reverse, intermittent
• Bubble Point: ≥ 3450 mbar (50 psig), water at 23°C
• Bacterial Retention: ≥ 1 x 10⁷ CFU/cm² B. diminuta (ASTM F838)
• Sterilization: Autoclavable, 3 cycles x 60 min at 126°C; not in-line steam sterilizable
• Materials: PVDF membrane; polypropylene housing, support and vent cap; silicone seal
• Endotoxins: < 0.5 EU/mL (LAL)
• Regulatory: Non-fiber releasing per 21 CFR 210.3(b)(6); components meet FDA 21 CFR 177-182
• Contents: 3 capsules per box, Certificate of Quality enclosed
• Manufacture Date: July 2022
• Quantity Available: 3 boxes

Condition

New, in the original sealed Millipore boxes. Manufactured July 2022.

Applications

Sterile and bioburden-reduction filtration of buffers, cell culture media, protein solutions and other aqueous process fluids in biopharmaceutical manufacturing, pilot plants and research labs.
