Purpose-Built Cold Chain Storage
PHCbi brand undercounter refrigerators are engineered to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage guidelines essential for vaccine cold chain storage.
Meeting Regulatory Standards
The PR-L5181W-PA features precise temperature control engineered to meet the current and evolving criteria included in the CDC guidelines for vaccine storage while requiring less energy than traditional undercounter refrigerators.

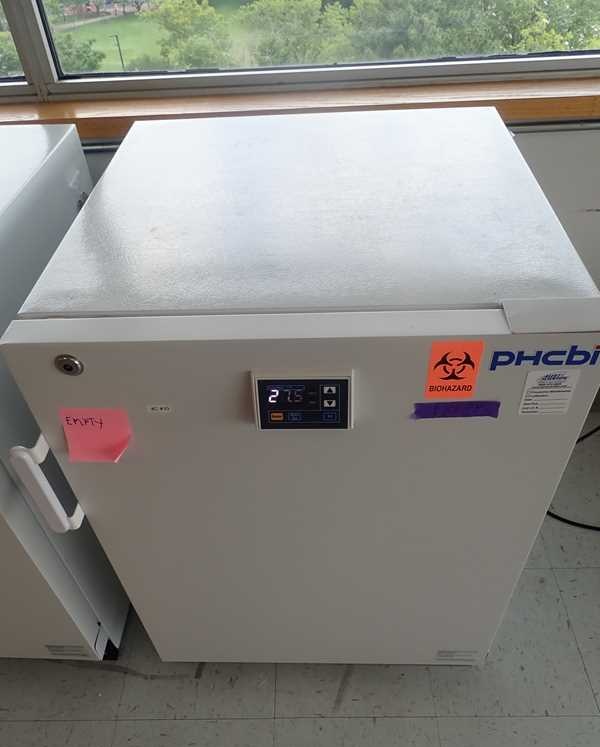

Compact Design
With a compact footprint, the PR-L5181W-PA is designed for functional workspaces and fits under most tables, cabinets and lab benches. An optional stacking accessory is available to maximize storage capacity when space constraints become a concern.
High Performance
The purpose-built PR-L5181W-PA is designed to maintain the high performance necessary for valuable inventory. This biomedical undercounter refrigerator has been designed to maintain high performance temperature uniformity of ±3°C even when loaded, as often occurs during peak vaccine season. The solid door protects light-sensitive materials. The self-closing mechanism mitigates scenarios that could result in lost product if a door is left ajar.
Rapid Response Controller and Alarms

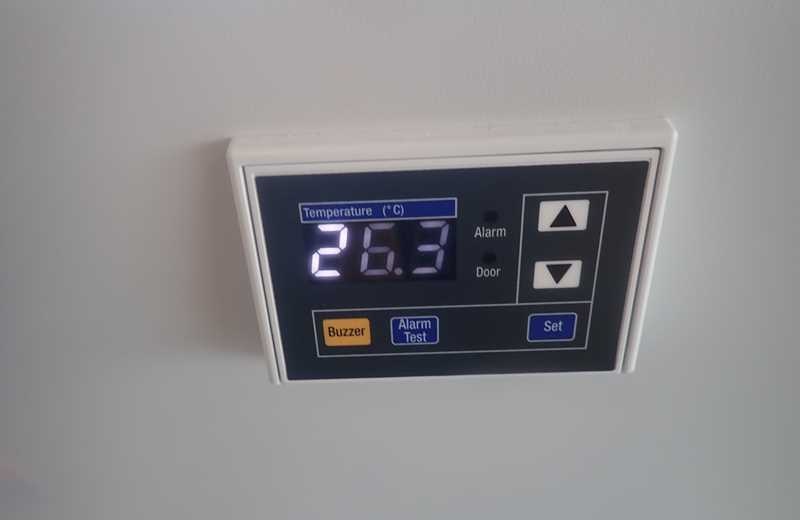

The unit has a door-mounted control with an easy to view LED display that features a preset automatic alarm tracking around the temperature setpoint. The alarm is set at +3°C above and below setpoint, consistent with vaccine and high-value product storage requirements.
Auto Defrost System
The PR-L5181W-PA undercounter refrigerator utilizes a sophisticated defrost cycle, which provides assurance of optimum temperature control maintenance at all times, minimizing temperature spikes often associated with common defrost systems.
ENERGY STAR® Certification and Sustainability
The PR-L5181W-PA undercounter medical refrigerator is ENERGY STAR Certified for performance and efficiency. ENERGY STAR uses independent testing by nationally recognized third-party laboratories to ensure energy efficiency and sustainability without compromising performance. The PR-L5181W-PA biomedical undercounter refrigerator has a daily energy consumption of 0.31 kWh/cu.ft.i
Traditional refrigerants have been replaced with environmentally friendly natural refrigerants to meet Environmental Protection Agency (EPA) Significant New Alternatives Policy (SNAP) guidelines and the AIM Act of 2020 for low global warming potential and no ozone-depleting substances.
Access Port and Security
The 1.2″ (30 mm) access port permits the passage of external temperature monitoring probes through the chamber without intruding on the door gasket. The door includes an integrated key lock.
| EXTERIOR DIMENSIONS | 23.8″ W x 23.7″ D x 34.1″ H (606 x 600 x 867 mm) |
|---|---|
| INTERIOR DIMENSIONS | 19.9″ W x 17.1″ D x 25.6″ H (507 x 434 x 650 mm) |
| EFFECTIVE CAPACITY | 5.0 cu.ft. (142 L) |

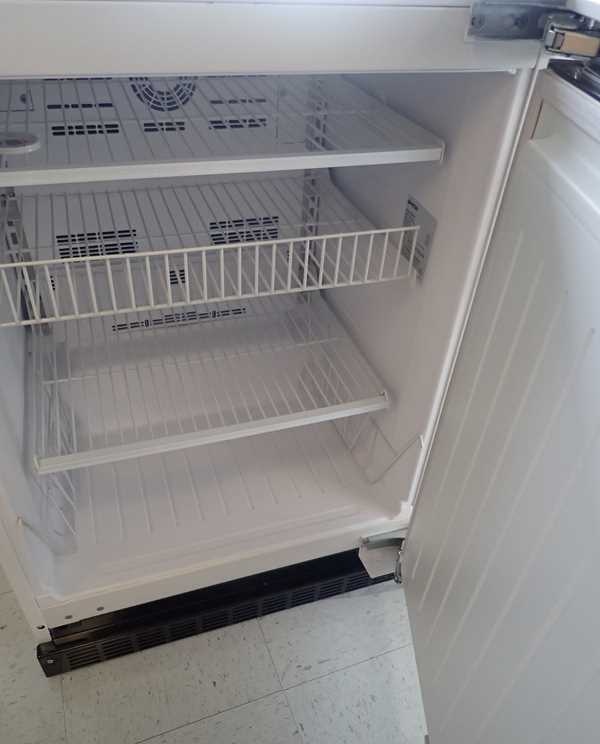

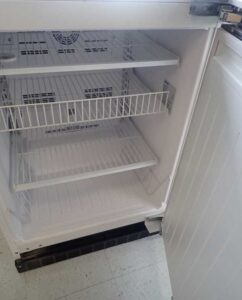

| SHELVES AND SHELF DIMENSIONS | 3, coated steel wire Dimensions: 19.2″ x 14.75″ (487 x 375 mm) |
| ACCESS PORT | 1: Right side of product (1.2″ (30 mm) diameter) |
| COMPRESSOR | 40 W (hermetic) |
| REFRIGERANT | R-600a |
| TEMPERATURE CONTROL RANGE | 2 to 8 in 0.1° increments |
| ALARMS | Power failure (Optional), high temperature deviation (V-B), low temperature deviation (V-B), door open (V-B), sensor failure (V) V=Visual, B=Buzzer |
| NET WEIGHT | 100 lbs (45 kg) |
| ELECTRICAL REQUIREMENTS | 115V, 60Hz, 1Ø, NEMA 5-15P requires NEMA 5-15R receptacle |
| DOORS | 1, Electro galvanized steel |
| INSULATION | HFO foamed-in-place |
| TEMPERATURE DISPLAY | LED |
| DOOR LOCK | Key lock, top mounted with 2 keys |
| ENERGY STAR CERTIFIED | ENERGY STAR Unique ID 2393116 |
