Overview

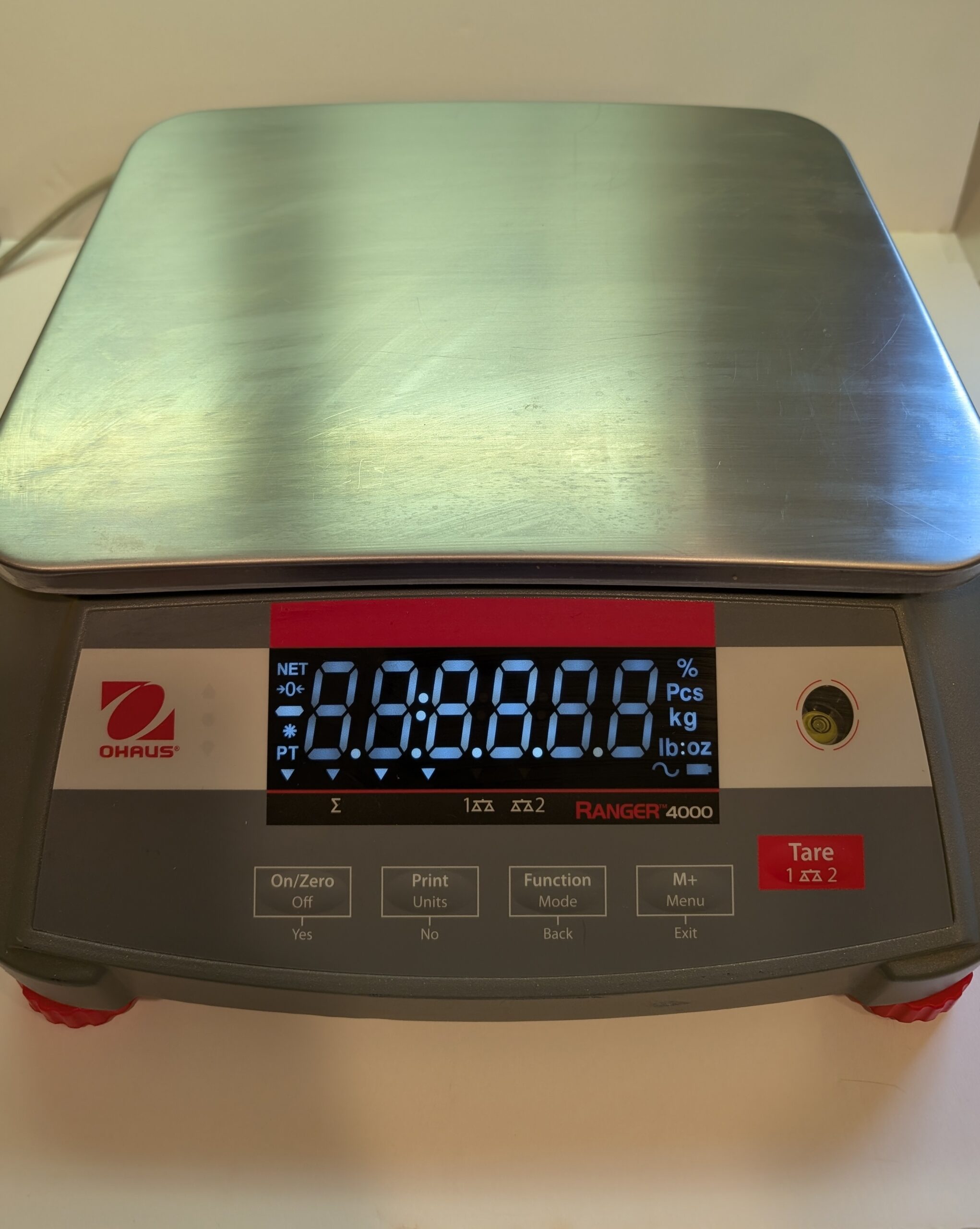

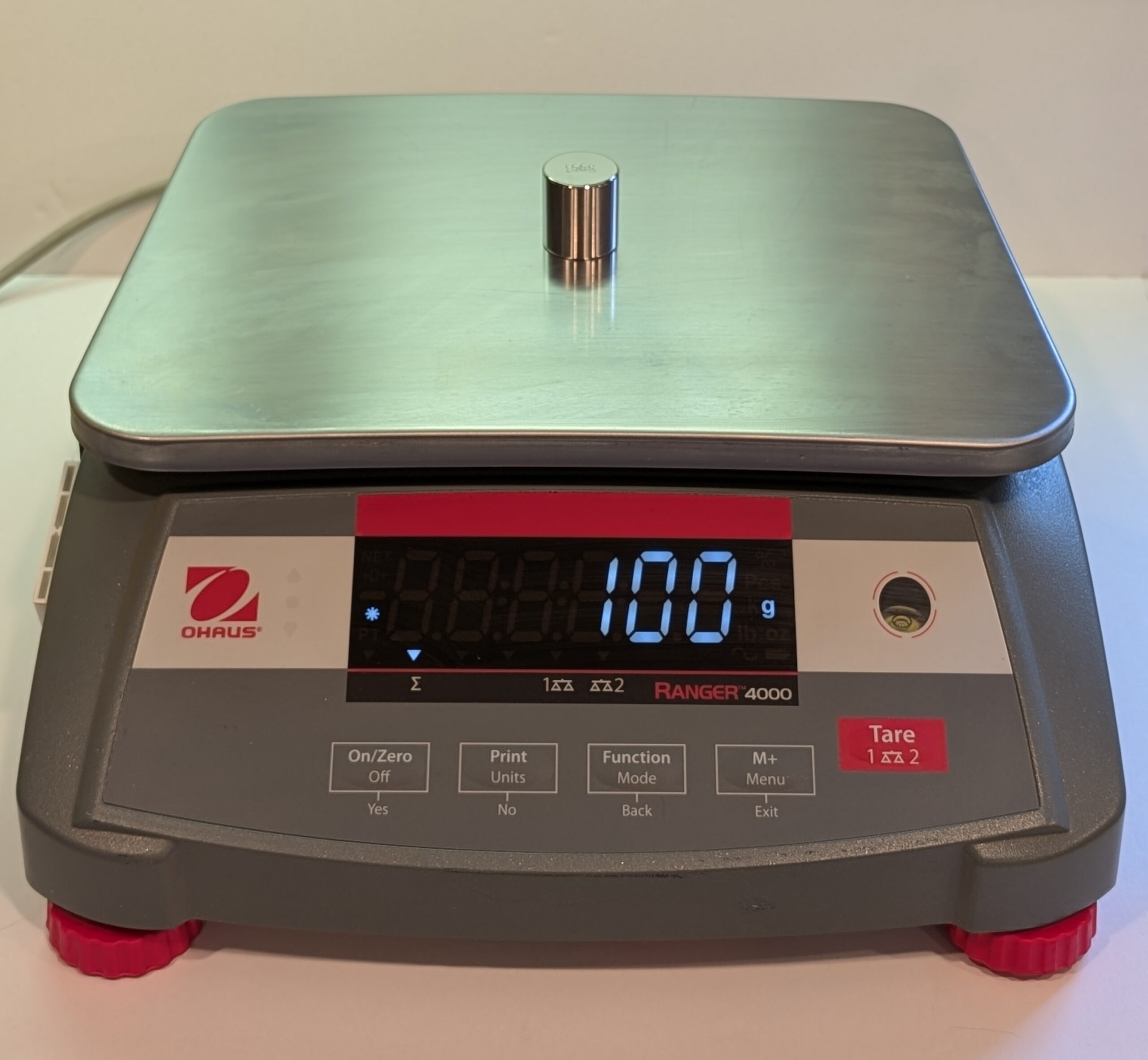

The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.
Applications
Weighing, Parts Counting, Checkweighing, Percent Weighing, Animal/Dynamic Weighing, Display Hold, Accumulation
Display

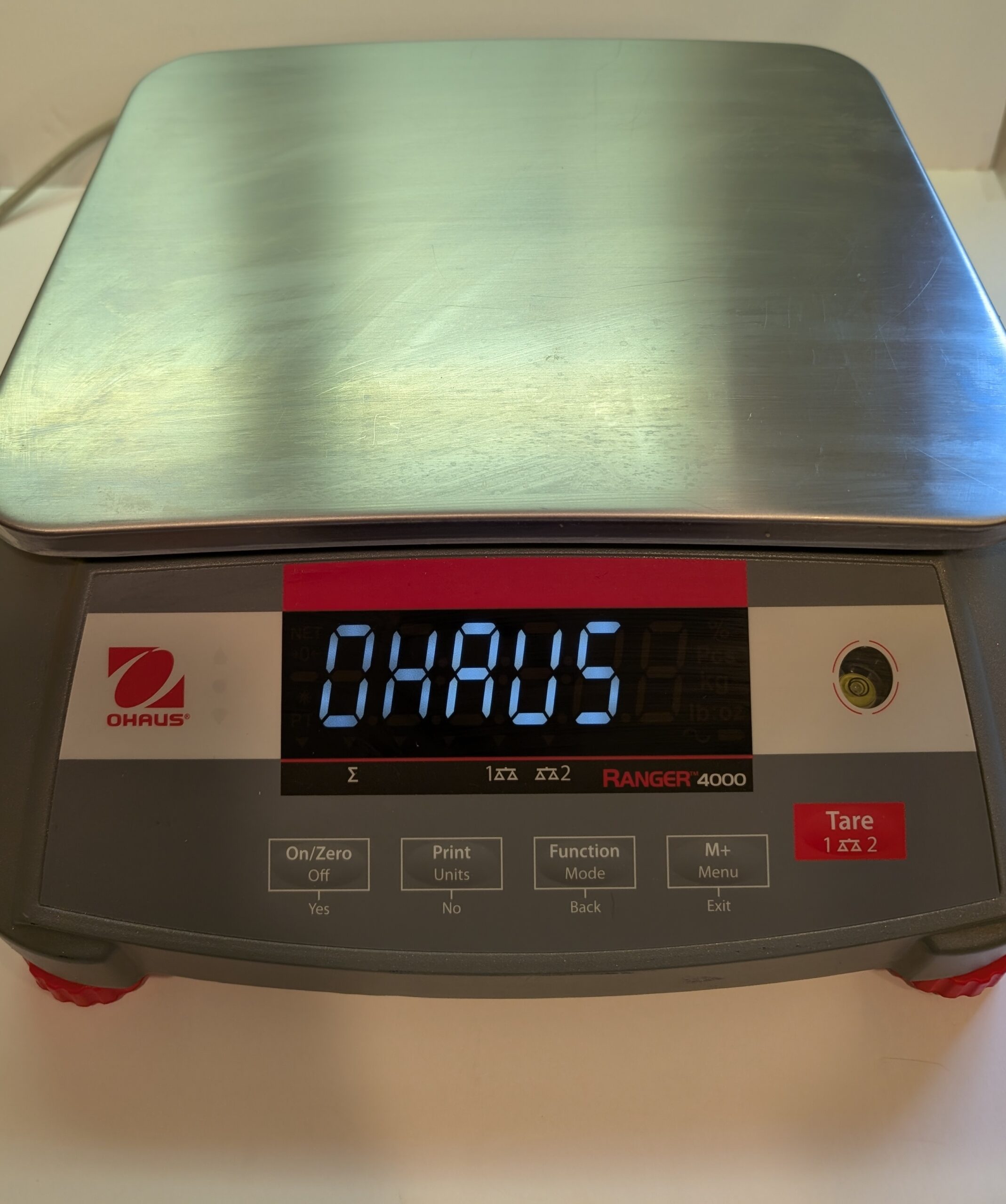

Light-emitting diode display (LED), 3 color checkweighing LEDs
Operation
AC power (included) or rechargeable battery (included)
Communication

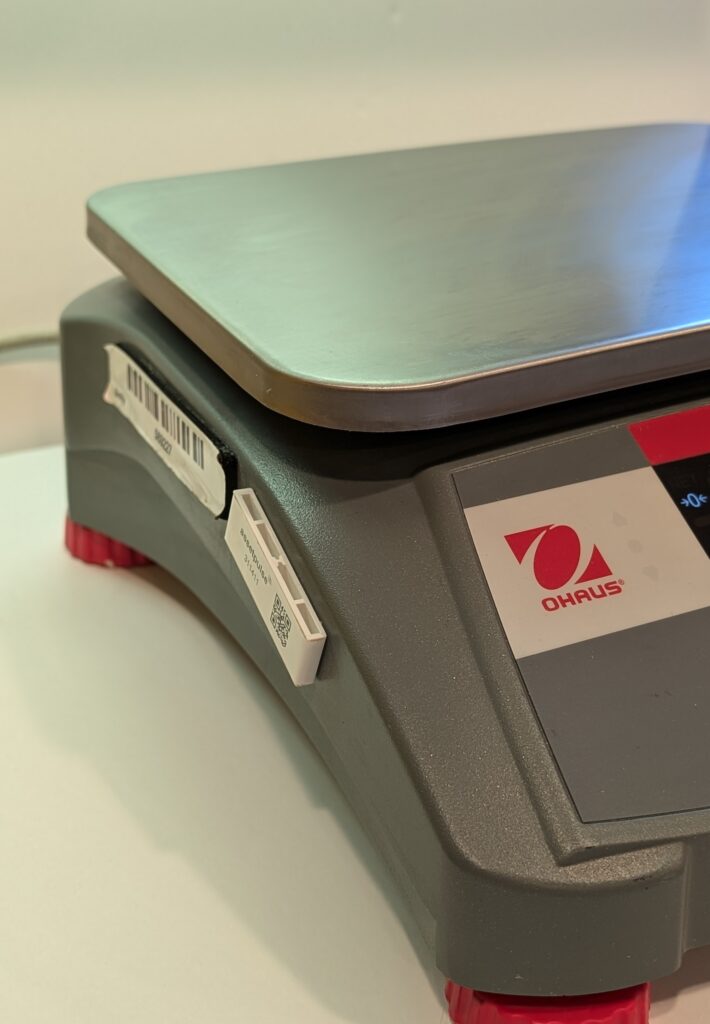

Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately)
Construction
Rugged Cast Aluminum Housing, Stainless Steel Platform
Design Features

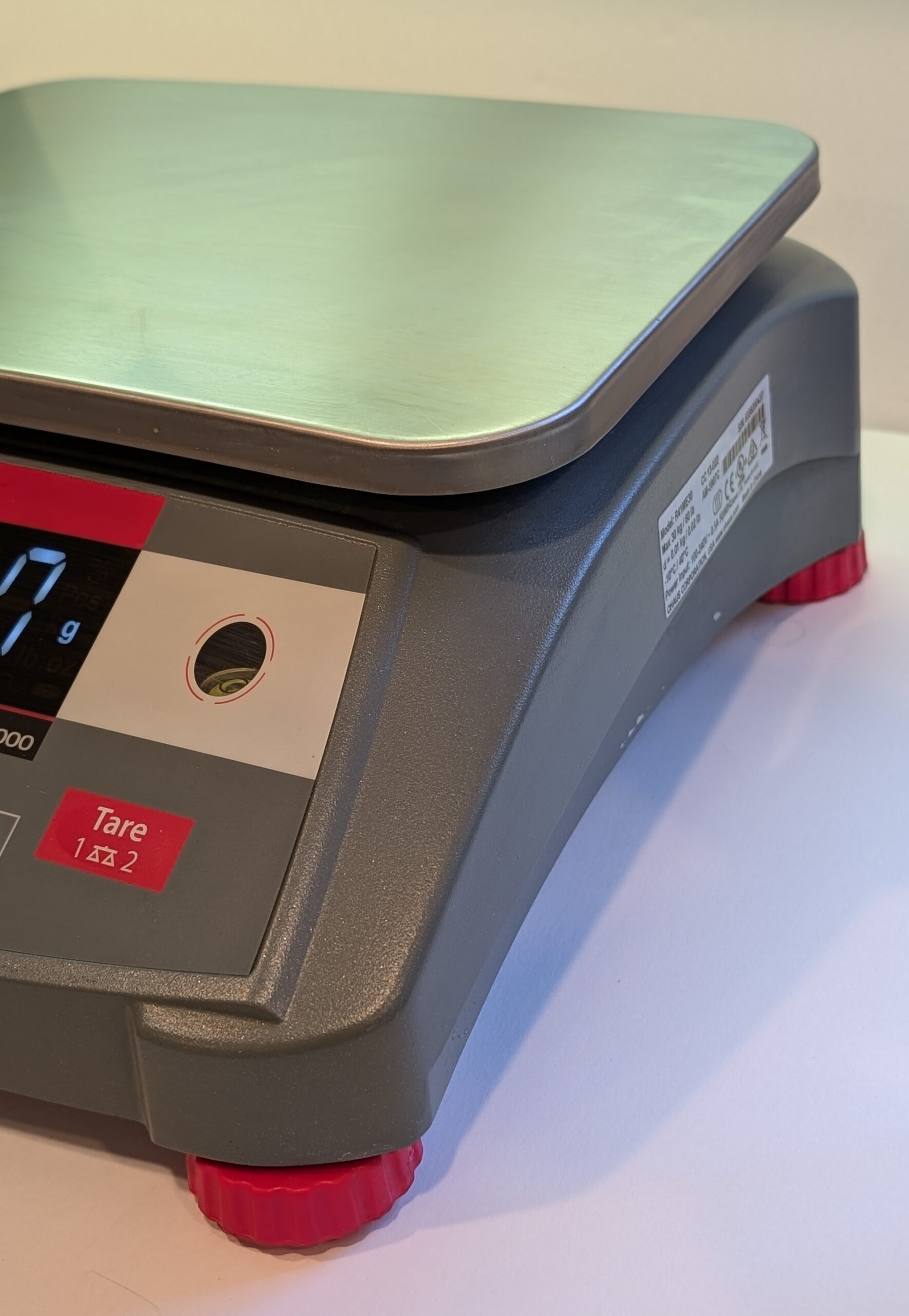

Cast Aluminum Housing, stainless steel platform, integral weigh-below hook, sealed front panel, menu lock switch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare
Specifications

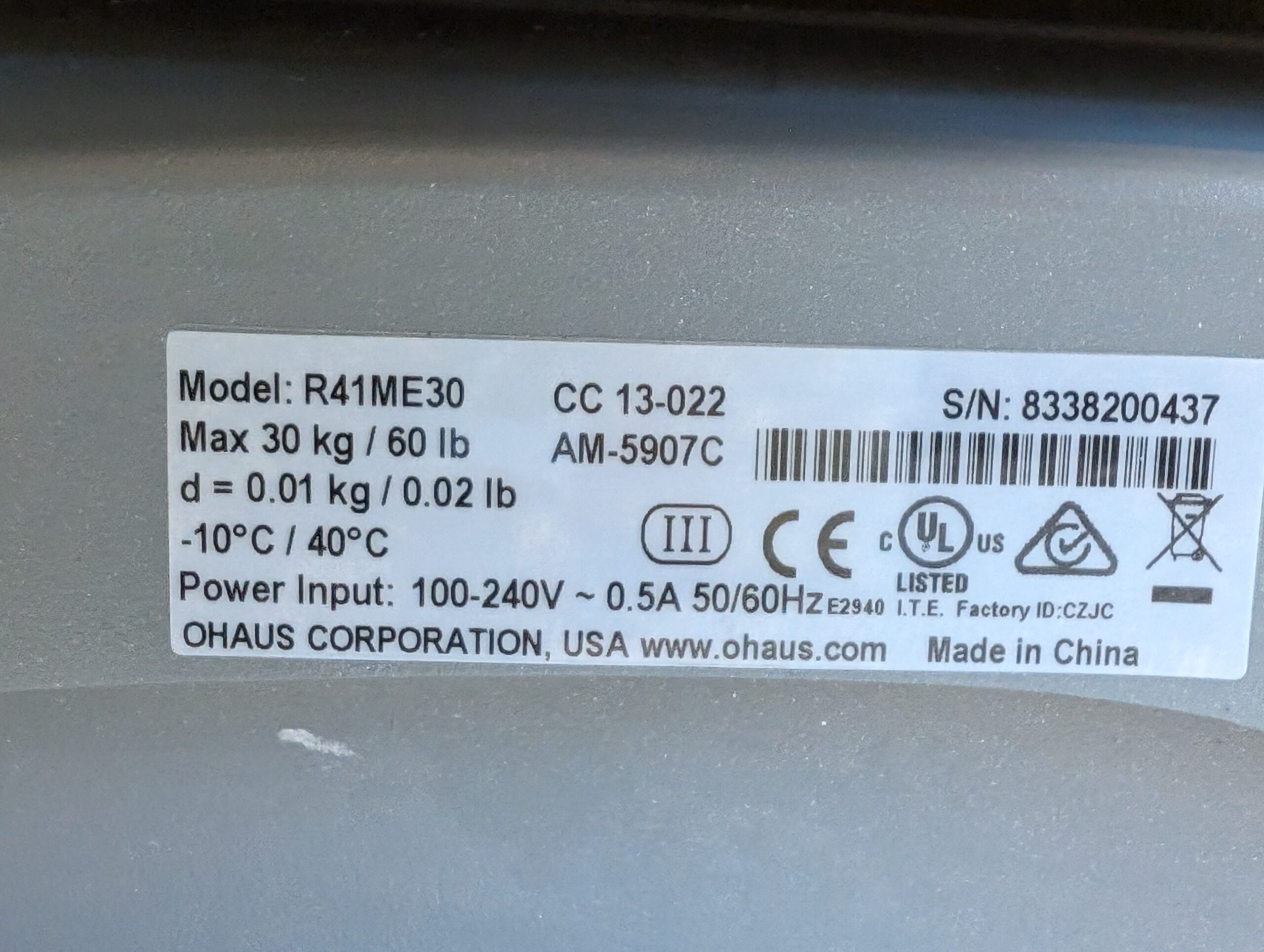

| Maximum Capacity | 60 lb (30 kg) |
| Readability | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved; OIML |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Battery Life | 100 Hours with Rechargeable Battery |
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Dimensions | 12.9 in x 4.8 in x 12.4 in (327 mm x 122 mm x 315 mm) (LxHxW) |
| Display | LED Display |
| In-Use Cover | Included |
| Linearity ± | 2 g |
| Net Weight | 13 lb (5.9 kg) |
| Platform Construction | Stainless Steel |
| Protection Rating | Not Applicable |
| Readability (Certified) | 0.02 lb (10 g) |
| Tare Range | To capacity by subtraction |
| Transportation Case | Not Applicable |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |
