Thermo Scientific™ Sorvall™ X4F and X4FR General Purpose Pro Floor Standing Centrifuges provide unmatched performance and versatility with an easy-to-use touch screen interface. Quickly and securely swap between 18 unique rotor options with the tool-less Thermo Scientific™ Auto-Lock™ Rotor Exchange. Save bench space with this floor standing model, standard with lockable casters for easy storage and to facilitate cleaning in clean room environments.
Available for purchase individually or in convenient application-based packages.
The floor standing GP Pro centrifuge series is available as ventilated models (X4F) or refrigerated models (X4FR) as well as for general laboratory use or IVD certified.
Performance features:

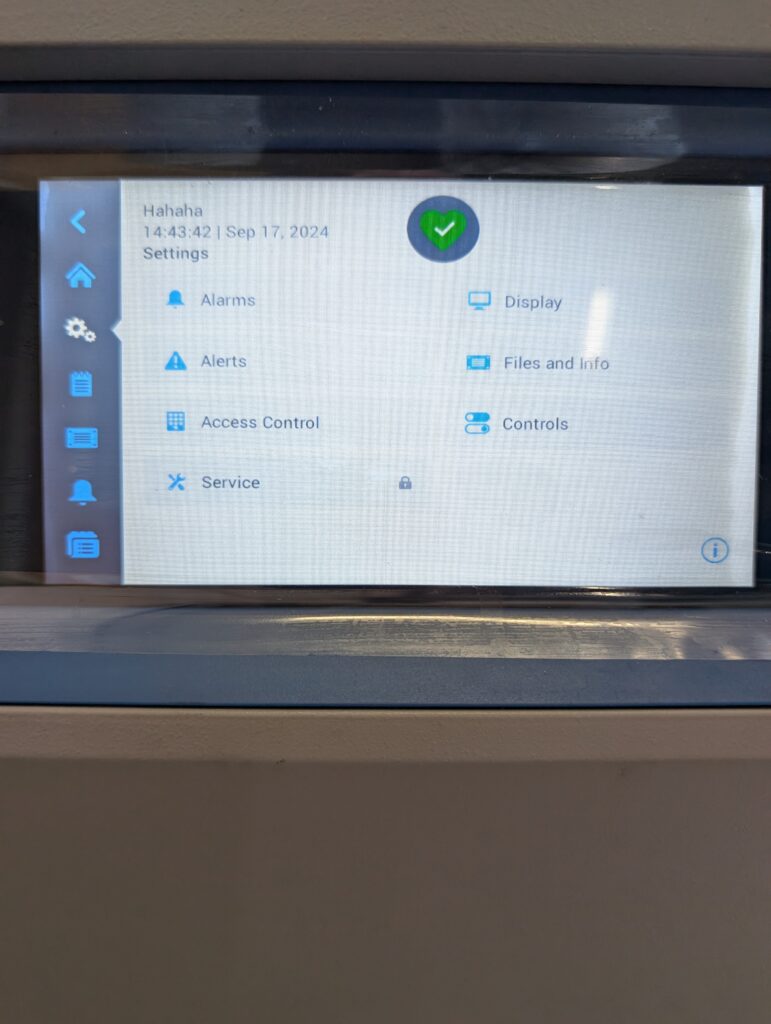

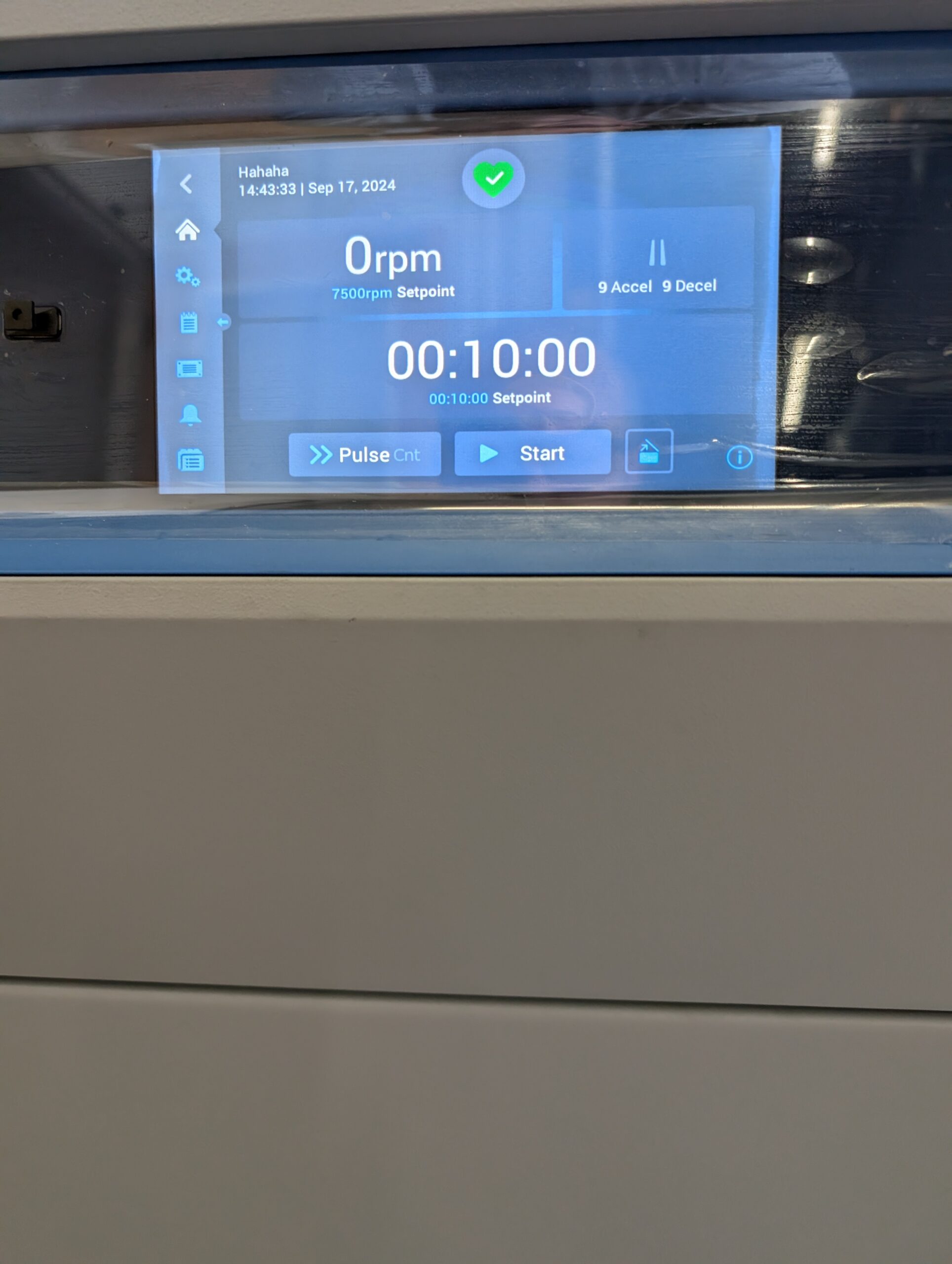

Intuitive touch screen user interface simplifies operation with easily accessible menu bar and centrifuge health icon for at-a-glance monitoring
Thermo Scientific™ Accumulated Centrifugal Effect (ACE™) integrator function for increased reproducibility
Thermo Scientific™ SMARTSpin™ imbalance technology optimizes safety and maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
Thermo Scientific™ Auto-Lock™ Rotor Exchange:
Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
Full chamber access for cleaning convenience and minimizes risk of contamination
Flexibility to quickly switch between applications and evolve changing laboratory needs
Thermo Scientific™ ClickSeal™ Biocontainment Lids:
Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
Audible and visual closure cues enhance safety and security
Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TÜV NORD CERT GmbH, Germany
Rotor versatility and Thermo Scientific™ Fiberlite™ Carbon Fiber Rotors:
Up to 18 unique rotor options, including Fiberlite Carbon Fiber Rotor options, to help maximize performance and flexibility
Fiberlite carbon fiber rotors are supported by a 15-year warranty and no limitation in cycles of use
Carbon fiber offers a unique ability to mold each cavity to perfectly fit disposable conical tubes, bottles, and other consumables
Safety and ergonomic features:
Floor standing model includes lockable casters for easy storage and to facilitate cleaning in clean room environments
Space saving design with compact dimensions to optimize work area at an ergonomic height
Lid safety features promote ergonomic sample loading and unloading and enable easy cleaning
Energy efficiency:
System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tube processing
Scheduling and compressor on/off capability promotes energy savings
Fiberlite rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run.*
Connectivity and data management:
Event Log, Rotor Log and Chart Data can be exported via USB in CSV or PDF formats
Programs are downloadable and shareable between units
Front USB port for easier plug in and data transfer
Optional Thermo Scientific™ SECURE-Spin™ Mode available, enables advanced and secure control features in the X Pro centrifuges by supporting 21 CFR Part 11 data management compliance and traceability
Traceable documentation provides audit trail for setting and program changes
Compatible with Thermo Scientific™ Centri-Log™ Plus Data Management Software enabling remote monitoring of unlimited number of centrifuges and sample tracking with a barcode reader
Specifications
| EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 | |

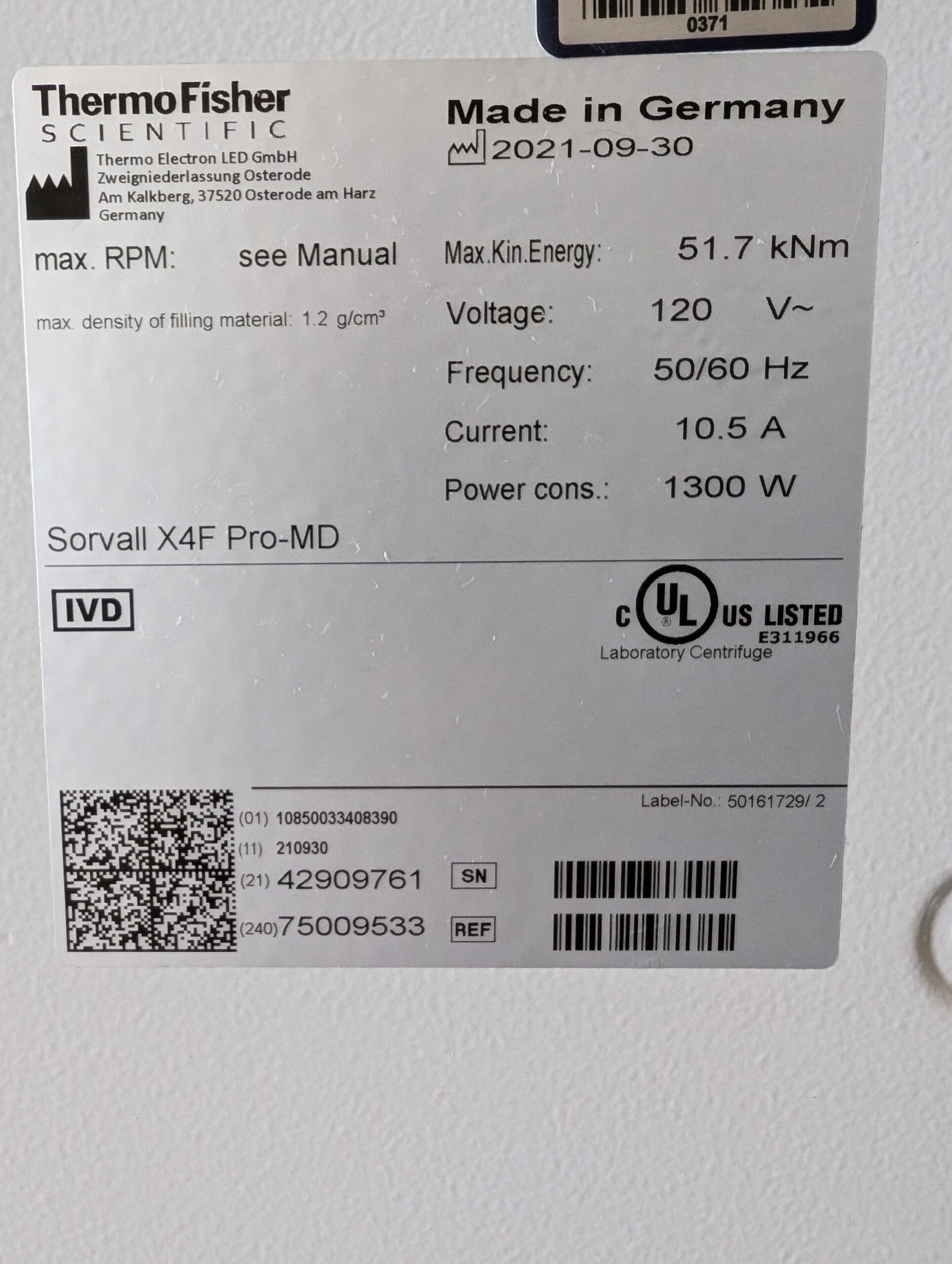

| Sorvall X4F Pro-MD, 120 V | |
| 25,830 x g Fixed Angle (with microliter 30 x 2 mL rotor); 7,197 x g Swing-Out (with H-Flex HS4 rotor) | |
| No | |
| Direct, Brushless Induction Low Profile | |
| Rotor needs to be purchased separately | |
| Stores up to 100 events and programs | |
| 9 Accel/10 Braking | |
| Each | |
| No | |
| General Purpose Centrifuge | |
| 32.8 x 22.3 x 27.2 in. (83.5 x 56.6 x 69 cm) | |
| 120 V |
| Microprocessor | |
| 4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor | |
| 15,200 rpm (Microliter 30 x 2 rotor) | |
| Full Color Touch Screen Interface | |
| Energy efficient, less waste | |
| Front, top, sides: PC-ABS plastic painted with 2K PUR-based lacquer; metal housing: cold rolled steel with powder paint; centrifuge bowl: stainless steel; centrifuge feet: lockable casters | |
| IVD Certified | |
| Up to 100 programs via full color touch screen interface | |
| 18 Rotor options available | |
| SMARTSpin Imbalance detection, finger-pinch prevention, crash-proof construction | |
| Yes | |
| 335 lb. (152 kg) | |
| Cleanroom compatibility Class ISO 7 according to DIN EN ISO 14644-1 |
Increase performance with versatility, speed and a robust, corrosion-free carbon fiber design by using the Thermo Scientific™ Fiberlite™ F14-6 x 250LE Fixed Angle Rotor, which supports a range of capacities and applications.
Fiberlite Rotors:
- Reduce run times with higher G-forces achieved through lightweight carbon fiber rotors
- Corrosion-and fatigue-resistant design that ensures structural integrity
- Compatible with Thermo Scientific™ Nalgene™ bottles and tubes for complete centrifuge solutions
